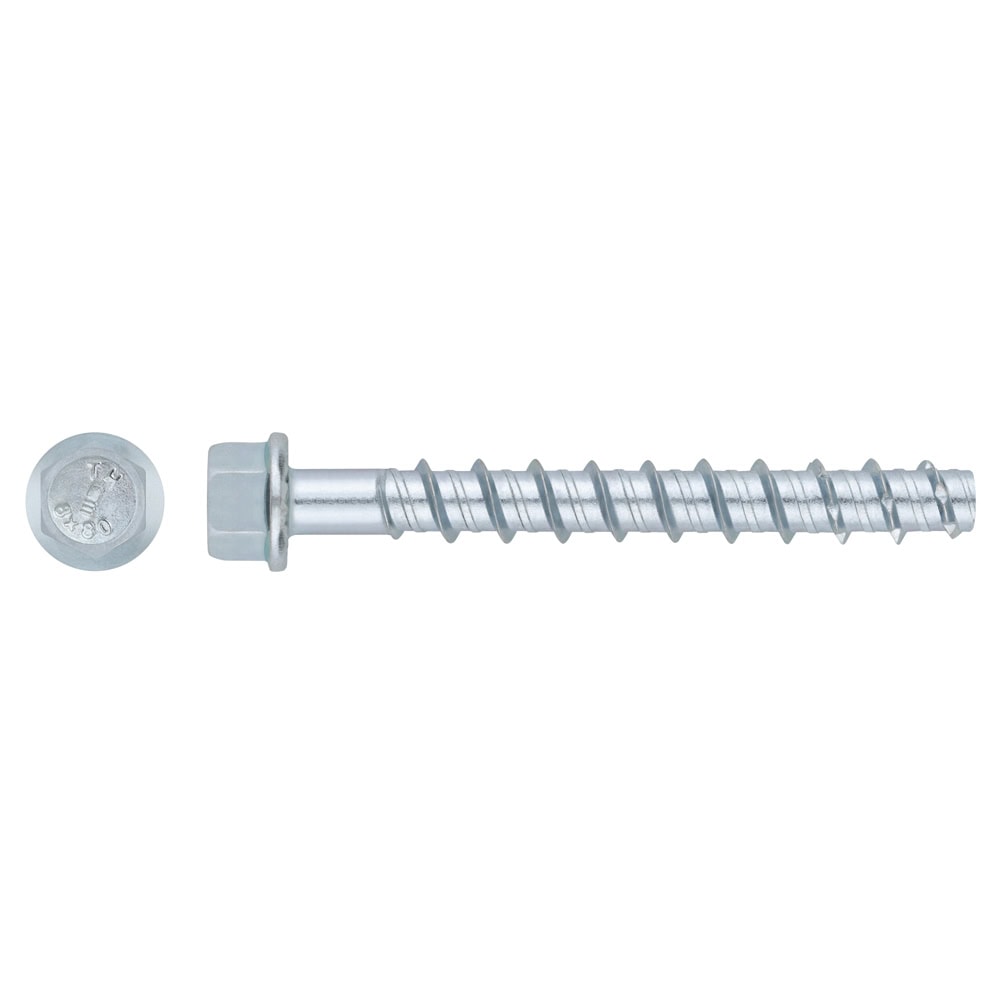

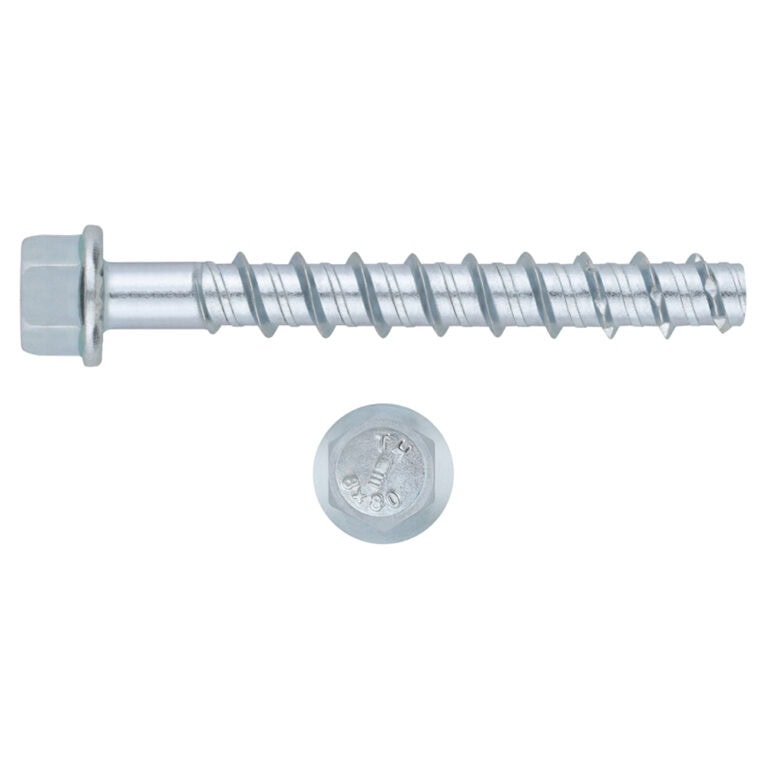

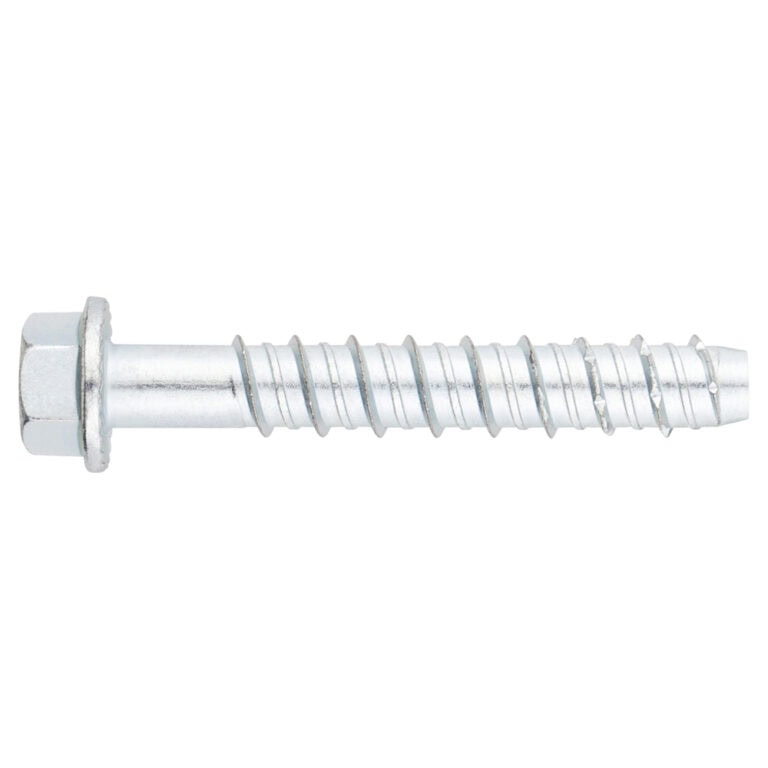

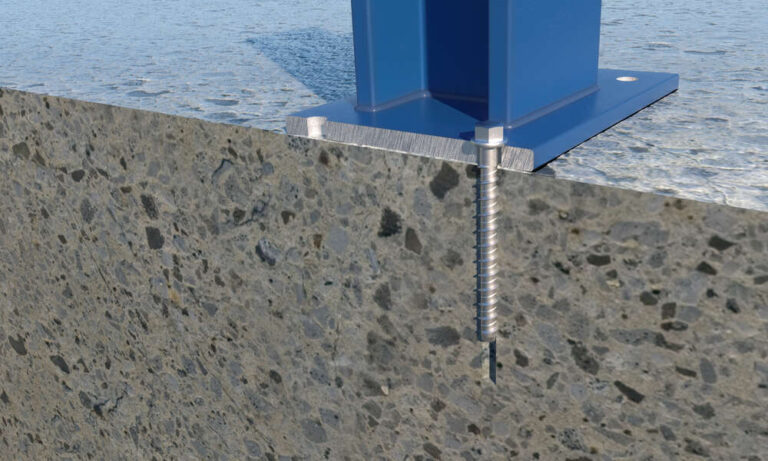

Concrete screw anchor with hexagonal head TFE

Direct fixing screw anchor with hexagon head for cracked and non-cracked concrete. Designed for fixing elements with high loads. Removable and reusable. ETE Opt.1 approved. Made of zinc plated steel.

ASSESSMENTS AND CERTIFICATES

+ info

Code	DRILL Ø X LENGTH	THICKNESS MAX.FIXTURE [mm]	Nº RECESS	Pcs Box	Pcs Masterbox	EAN
TFE05040	Ø5 x 40	5	8	100	2.400	8423533845245

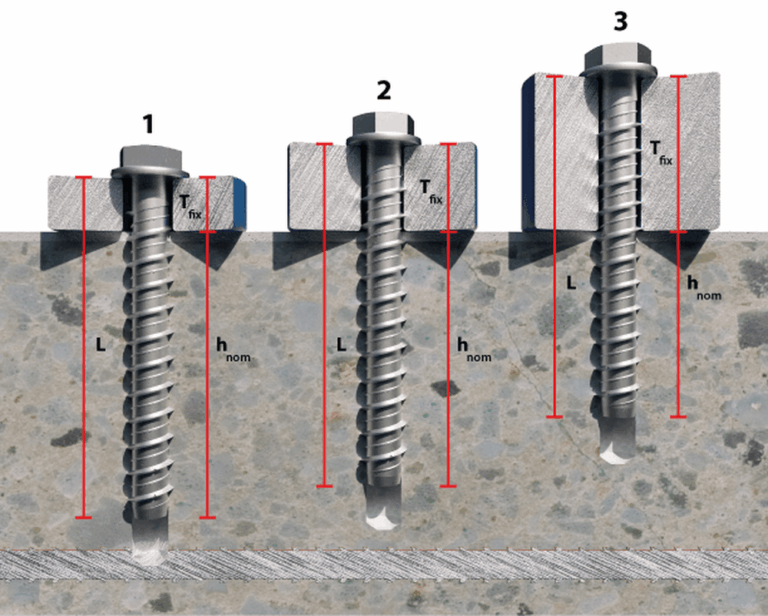

	t_fix- Max. fixture thickness5 SW - Installation key8 d_f - Ø Element to fix8 T_ins - Torque (Nm)8 h_nom - Min. anchor depth35 h₁ - Drill hole depth min.45 d₀ - Ø Drill5 h_min- Min. substrate thickness80 L - Lenght40
TFE05050	Ø5 x 50	5	8	100	1.600	8423533845252
	t_fix- Max. fixture thickness5 SW - Installation key8 d_f - Ø Element to fix8 T_ins - Torque (Nm)8 h_nom - Min. anchor depth45 h₁ - Drill hole depth min.55 d₀ - Ø Drill5 h_min- Min. substrate thickness80 L - Lenght50
TFE05060	Ø5 x 60	15	8	100	1.600	8423533845269
	t_fix- Max. fixture thickness15 SW - Installation key8 d_f - Ø Element to fix8 T_ins - Torque (Nm)8 h_nom - Min. anchor depth45 h₁ - Drill hole depth min.55 d₀ - Ø Drill5 h_min- Min. substrate thickness80 L - Lenght60
TFE05080	Ø5 x 80	35	8	50	800	8423533845276
	t_fix- Max. fixture thickness35 SW - Installation key8 d_f - Ø Element to fix8 T_ins - Torque (Nm)8 h_nom - Min. anchor depth45 h₁ - Drill hole depth min.55 d₀ - Ø Drill5 h_min- Min. substrate thickness80 L - Lenght80
TFE05100	Ø5 x 100	55	8	50	800	8423533845283
	t_fix- Max. fixture thickness55 SW - Installation key8 d_f - Ø Element to fix8 T_ins - Torque (Nm)8 h_nom - Min. anchor depth45 h₁ - Drill hole depth min.55 d₀ - Ø Drill5 h_min- Min. substrate thickness80 L - Lenght100
TFE06035	Ø6 x 35	--	10	100	1.600	8423533917942
	t_fix- Max. fixture thickness-- SW - Installation key10 d_f - Ø Element to fix9 T_ins - Torque (Nm)10 h_nom - Min. anchor depth35 h₁ - Drill hole depth min.45 d₀ - Ø Drill6 h_min- Min. substrate thickness100 L - Lenght35
TFE06040	Ø6 x 40	5	10	100	1.600	8423533845290
	t_fix- Max. fixture thickness5 SW - Installation key10 d_f - Ø Element to fix9 T_ins - Torque (Nm)10 h_nom - Min. anchor depth35 h₁ - Drill hole depth min.45 d₀ - Ø Drill6 h_min- Min. substrate thickness100 L - Lenght40
TFE06045	Ø6 x 45	10	10	100	1.200	8423533917959
	t_fix- Max. fixture thickness10 SW - Installation key10 d_f - Ø Element to fix9 T_ins - Torque (Nm)10 h_nom - Min. anchor depth35 h₁ - Drill hole depth min.45 d₀ - Ø Drill6 h_min- Min. substrate thickness100 L - Lenght45
TFE06050	Ø6 x 50	15	10	100	1.200	8423533845306
	t_fix- Max. fixture thickness15 SW - Installation key10 d_f - Ø Element to fix9 T_ins - Torque (Nm)10 h_nom - Min. anchor depth35 h₁ - Drill hole depth min.45 d₀ - Ø Drill6 h_min- Min. substrate thickness100 L - Lenght50
TFE06060	Ø6 x 60	5	10	100	1.200	8423533845313
	t_fix- Max. fixture thickness5 SW - Installation key10 d_f - Ø Element to fix9 T_ins - Torque (Nm)10 h_nom - Min. anchor depth55 h₁ - Drill hole depth min.65 d₀ - Ø Drill6 h_min- Min. substrate thickness100 L - Lenght60
TFE06070	Ø6 x 70	15	10	50	600	8423533845320
	t_fix- Max. fixture thickness15 SW - Installation key10 d_f - Ø Element to fix9 T_ins - Torque (Nm)10 h_nom - Min. anchor depth55 h₁ - Drill hole depth min.65 d₀ - Ø Drill6 h_min- Min. substrate thickness100 L - Lenght70
TFE06080	Ø6 x 80	25	10	50	800	8423533845337
	t_fix- Max. fixture thickness25 SW - Installation key10 d_f - Ø Element to fix9 T_ins - Torque (Nm)10 h_nom - Min. anchor depth55 h₁ - Drill hole depth min.65 d₀ - Ø Drill6 h_min- Min. substrate thickness100 L - Lenght80
TFE06100	Ø6 x 100	45	10	25	400	8423533845344
	t_fix- Max. fixture thickness45 SW - Installation key10 d_f - Ø Element to fix9 T_ins - Torque (Nm)10 h_nom - Min. anchor depth55 h₁ - Drill hole depth min.65 d₀ - Ø Drill6 h_min- Min. substrate thickness100 L - Lenght100
TFE06120	Ø6 x 120	65	10	25	400	8423533845351
	t_fix- Max. fixture thickness65 SW - Installation key10 d_f - Ø Element to fix9 T_ins - Torque (Nm)10 h_nom - Min. anchor depth55 h₁ - Drill hole depth min.65 d₀ - Ø Drill6 h_min- Min. substrate thickness100 L - Lenght120
TFE08055	Ø8 x 55	5	13	50	600	8423533845368
	t_fix- Max. fixture thickness5 SW - Installation key13 d_f - Ø Element to fix12 T_ins - Torque (Nm)20 h_nom - Min. anchor depth50 h₁ - Drill hole depth min.60 d₀ - Ø Drill8 h_min- Min. substrate thickness100 L - Lenght55
TFE08060	Ø8 x 60	10	13	50	600	8423533845375
	t_fix- Max. fixture thickness10 SW - Installation key13 d_f - Ø Element to fix12 T_ins - Torque (Nm)20 h_nom - Min. anchor depth50 h₁ - Drill hole depth min.60 d₀ - Ø Drill8 h_min- Min. substrate thickness100 L - Lenght60
TFE08070	Ø8 x 70	5	13	50	200	8423533845382
	t_fix- Max. fixture thickness5 SW - Installation key13 d_f - Ø Element to fix12 T_ins - Torque (Nm)20 h_nom - Min. anchor depth65 h₁ - Drill hole depth min.75 d₀ - Ø Drill8 h_min- Min. substrate thickness100 L - Lenght70
TFE08075	Ø8 x 75	10	13	25	400	8423533917966
	t_fix- Max. fixture thickness10 SW - Installation key13 d_f - Ø Element to fix12 T_ins - Torque (Nm)20 h_nom - Min. anchor depth65 h₁ - Drill hole depth min.75 d₀ - Ø Drill8 h_min- Min. substrate thickness100 L - Lenght75
TFE08080	Ø8 x 80	15	13	25	400	8423533845399
	t_fix- Max. fixture thickness15 SW - Installation key13 d_f - Ø Element to fix12 T_ins - Torque (Nm)20 h_nom - Min. anchor depth65 h₁ - Drill hole depth min.75 d₀ - Ø Drill8 h_min- Min. substrate thickness100 L - Lenght80
TFE08090	Ø8 x 90	25	13	25	400	8423533845405
	t_fix- Max. fixture thickness25 SW - Installation key13 d_f - Ø Element to fix12 T_ins - Torque (Nm)20 h_nom - Min. anchor depth65 h₁ - Drill hole depth min.75 d₀ - Ø Drill8 h_min- Min. substrate thickness100 L - Lenght90
TFE08100	Ø8 x 100	35	13	25	400	8423533845412
	t_fix- Max. fixture thickness35 SW - Installation key13 d_f - Ø Element to fix12 T_ins - Torque (Nm)20 h_nom - Min. anchor depth65 h₁ - Drill hole depth min.75 d₀ - Ø Drill8 h_min- Min. substrate thickness100 L - Lenght100
TFE08110	Ø8 x 110	45	13	25	400	8423533845429
	t_fix- Max. fixture thickness45 SW - Installation key13 d_f - Ø Element to fix12 T_ins - Torque (Nm)20 h_nom - Min. anchor depth65 h₁ - Drill hole depth min.75 d₀ - Ø Drill8 h_min- Min. substrate thickness100 L - Lenght110
TFE08120	Ø8 x 120	55	13	25	400	8423533845436
	t_fix- Max. fixture thickness55 SW - Installation key13 d_f - Ø Element to fix12 T_ins - Torque (Nm)20 h_nom - Min. anchor depth65 h₁ - Drill hole depth min.75 d₀ - Ø Drill8 h_min- Min. substrate thickness100 L - Lenght120
TFE08140	Ø8 x 140	75	13	25	300	8423533845443
	t_fix- Max. fixture thickness75 SW - Installation key13 d_f - Ø Element to fix12 T_ins - Torque (Nm)20 h_nom - Min. anchor depth65 h₁ - Drill hole depth min.75 d₀ - Ø Drill8 h_min- Min. substrate thickness100 L - Lenght140
TFE10060	Ø10 x 60	5	15	50	200	8423533845450
	t_fix- Max. fixture thickness5 SW - Installation key15 d_f - Ø Element to fix14 T_ins - Torque (Nm)30 h_nom - Min. anchor depth55 h₁ - Drill hole depth min.65 d₀ - Ø Drill10 h_min- Min. substrate thickness100 L - Lenght60
TFE10070	Ø10 x 70	15	15	50	200	8423533845467
	t_fix- Max. fixture thickness15 SW - Installation key15 d_f - Ø Element to fix14 T_ins - Torque (Nm)30 h_nom - Min. anchor depth55 h₁ - Drill hole depth min.65 d₀ - Ø Drill10 h_min- Min. substrate thickness100 L - Lenght70
TFE10080	Ø10 x 80	25	15	50	300	8423533845474
	t_fix- Max. fixture thickness25 SW - Installation key15 d_f - Ø Element to fix14 T_ins - Torque (Nm)30 h_nom - Min. anchor depth75 h₁ - Drill hole depth min.85 d₀ - Ø Drill10 h_min- Min. substrate thickness120 L - Lenght80
TFE10090	Ø10 x 90	5	15	25	300	8423533845481
	t_fix- Max. fixture thickness5 SW - Installation key15 d_f - Ø Element to fix14 T_ins - Torque (Nm)30 h_nom - Min. anchor depth85 h₁ - Drill hole depth min.95 d₀ - Ø Drill10 h_min- Min. substrate thickness135 L - Lenght90
TFE10100	Ø10 x 100	15	15	25	300	8423533479068
	t_fix- Max. fixture thickness15 SW - Installation key15 d_f - Ø Element to fix14 T_ins - Torque (Nm)30 h_nom - Min. anchor depth85 h₁ - Drill hole depth min.95 d₀ - Ø Drill10 h_min- Min. substrate thickness135 L - Lenght100
TFE10120	Ø10 x 120	35	15	25	200	8423533845504
	t_fix- Max. fixture thickness35 SW - Installation key15 d_f - Ø Element to fix14 T_ins - Torque (Nm)30 h_nom - Min. anchor depth85 h₁ - Drill hole depth min.95 d₀ - Ø Drill10 h_min- Min. substrate thickness135 L - Lenght120
TFE10140	Ø10 x 140	55	15	25	100	8423533845511
	t_fix- Max. fixture thickness55 SW - Installation key15 d_f - Ø Element to fix14 T_ins - Torque (Nm)30 h_nom - Min. anchor depth85 h₁ - Drill hole depth min.95 d₀ - Ø Drill10 h_min- Min. substrate thickness135 L - Lenght140
TFE10160	Ø10 x 160	75	15	25	100	8423533917973
	t_fix- Max. fixture thickness75 SW - Installation key15 d_f - Ø Element to fix14 T_ins - Torque (Nm)30 h_nom - Min. anchor depth85 h₁ - Drill hole depth min.95 d₀ - Ø Drill10 h_min- Min. substrate thickness135 L - Lenght160
TFE10180	Ø10 x 180	95	15	25	100	8423533917980
	t_fix- Max. fixture thickness95 SW - Installation key15 d_f - Ø Element to fix14 T_ins - Torque (Nm)30 h_nom - Min. anchor depth85 h₁ - Drill hole depth min.95 d₀ - Ø Drill10 h_min- Min. substrate thickness135 L - Lenght180
TFE12080	Ø12 x 80	5	18	25	100	8423533845528
	t_fix- Max. fixture thickness5 SW - Installation key18 d_f - Ø Element to fix16 T_ins - Torque (Nm)50 h_nom - Min. anchor depth75 h₁ - Drill hole depth min.90 d₀ - Ø Drill12 h_min- Min. substrate thickness120 L - Lenght80
TFE12090	Ø12 x 90	15	18	25	100	8423533845535
	t_fix- Max. fixture thickness15 SW - Installation key18 d_f - Ø Element to fix16 T_ins - Torque (Nm)50 h_nom - Min. anchor depth75 h₁ - Drill hole depth min.90 d₀ - Ø Drill12 h_min- Min. substrate thickness120 L - Lenght90
TFE12100	Ø12 x 100	25	18	25	100	8423533917997
	t_fix- Max. fixture thickness25 SW - Installation key18 d_f - Ø Element to fix16 T_ins - Torque (Nm)50 h_nom - Min. anchor depth75 h₁ - Drill hole depth min.90 d₀ - Ø Drill12 h_min- Min. substrate thickness120 L - Lenght100
TFE12110	Ø12 x 110	5	18	25	100	8423533845542
	t_fix- Max. fixture thickness5 SW - Installation key18 d_f - Ø Element to fix16 T_ins - Torque (Nm)50 h_nom - Min. anchor depth105 h₁ - Drill hole depth min.120 d₀ - Ø Drill12 h_min- Min. substrate thickness170 L - Lenght110
TFE12130	Ø12 x 130	25	18	25	150	8423533845559
	t_fix- Max. fixture thickness25 SW - Installation key18 d_f - Ø Element to fix16 T_ins - Torque (Nm)50 h_nom - Min. anchor depth105 h₁ - Drill hole depth min.120 d₀ - Ø Drill12 h_min- Min. substrate thickness170 L - Lenght130
TFE12150	Ø12 x 150	45	18	25	100	8423533479075
	t_fix- Max. fixture thickness45 SW - Installation key18 d_f - Ø Element to fix16 T_ins - Torque (Nm)50 h_nom - Min. anchor depth105 h₁ - Drill hole depth min.120 d₀ - Ø Drill12 h_min- Min. substrate thickness170 L - Lenght150
TFE14080	Ø14 x 80	5	21	25	150	8423533845573
	t_fix- Max. fixture thickness5 SW - Installation key21 d_f - Ø Element to fix18 T_ins - Torque (Nm)70 h_nom - Min. anchor depth75 h₁ - Drill hole depth min.90 d₀ - Ø Drill14 h_min- Min. substrate thickness120 L - Lenght80
TFE14100	Ø14 x 100	25	21	25	150	8423533845580
	t_fix- Max. fixture thickness25 SW - Installation key21 d_f - Ø Element to fix18 T_ins - Torque (Nm)70 h_nom - Min. anchor depth75 h₁ - Drill hole depth min.90 d₀ - Ø Drill14 h_min- Min. substrate thickness120 L - Lenght100
TFE14110	Ø14 x 110	35	21	25	100	8423533918000
	t_fix- Max. fixture thickness35 SW - Installation key21 d_f - Ø Element to fix18 T_ins - Torque (Nm)70 h_nom - Min. anchor depth75 h₁ - Drill hole depth min.90 d₀ - Ø Drill14 h_min- Min. substrate thickness120 L - Lenght110
TFE14120	Ø14 x 120	5	21	25	100	8423533845597
	t_fix- Max. fixture thickness5 SW - Installation key21 d_f - Ø Element to fix18 T_ins - Torque (Nm)70 h_nom - Min. anchor depth115 h₁ - Drill hole depth min.130 d₀ - Ø Drill14 h_min- Min. substrate thickness185 L - Lenght120
TFE14130	Ø14 x 130	15	21	25	100	8423533845603
	t_fix- Max. fixture thickness15 SW - Installation key21 d_f - Ø Element to fix18 T_ins - Torque (Nm)70 h_nom - Min. anchor depth115 h₁ - Drill hole depth min.130 d₀ - Ø Drill14 h_min- Min. substrate thickness185 L - Lenght130
TFE14140	Ø14 x 140	25	21	25	100	8423533845610
	t_fix- Max. fixture thickness25 SW - Installation key21 d_f - Ø Element to fix18 T_ins - Torque (Nm)70 h_nom - Min. anchor depth115 h₁ - Drill hole depth min.130 d₀ - Ø Drill14 h_min- Min. substrate thickness185 L - Lenght140
TFE14160	Ø14 x 160	45	21	25	50	8423533845627
	t_fix- Max. fixture thickness45 SW - Installation key21 d_f - Ø Element to fix18 T_ins - Torque (Nm)70 h_nom - Min. anchor depth115 h₁ - Drill hole depth min.130 d₀ - Ø Drill14 h_min- Min. substrate thickness185 L - Lenght160
TFE16100	Ø16 x 100	20		25	100	8423533864680
	t_fix- Max. fixture thickness20 SW - Installation key24 d_f - Ø Element to fix20 T_ins - Torque (Nm)80 h_nom - Min. anchor depth80 h₁ - Drill hole depth min.100 d₀ - Ø Drill16 h_min- Min. substrate thickness115 L - Lenght100
TFE16150	Ø16 x 150	30		25	75	8423533864697
	t_fix- Max. fixture thickness30 SW - Installation key24 d_f - Ø Element to fix20 T_ins - Torque (Nm)80 h_nom - Min. anchor depth120 h₁ - Drill hole depth min.140 d₀ - Ø Drill16 h_min- Min. substrate thickness185 L - Lenght150
TFE18100	Ø18 x 100	10	24	20	80	8423533845634
	t_fix- Max. fixture thickness10 SW - Installation key24 d_f - Ø Element to fix22 T_ins - Torque (Nm)90 h_nom - Min. anchor depth90 h₁ - Drill hole depth min.110 d₀ - Ø Drill18 h_min- Min. substrate thickness140 L - Lenght100
TFE18130	Ø18 x 130	40	24	20	40	8423533845641
	t_fix- Max. fixture thickness40 SW - Installation key24 d_f - Ø Element to fix22 T_ins - Torque (Nm)90 h_nom - Min. anchor depth90 h₁ - Drill hole depth min.110 d₀ - Ø Drill18 h_min- Min. substrate thickness140 L - Lenght130
TFE18160	Ø18 x 160	20	24	15	30	8423533845658
	t_fix- Max. fixture thickness20 SW - Installation key24 d_f - Ø Element to fix22 T_ins - Torque (Nm)90 h_nom - Min. anchor depth140 h₁ - Drill hole depth min.160 d₀ - Ø Drill18 h_min- Min. substrate thickness225 L - Lenght160
TFE18180	Ø18 x 180	40	24	15	30	8423533845665
	t_fix- Max. fixture thickness40 SW - Installation key24 d_f - Ø Element to fix22 T_ins - Torque (Nm)90 h_nom - Min. anchor depth140 h₁ - Drill hole depth min.160 d₀ - Ø Drill18 h_min- Min. substrate thickness225 L - Lenght180
TFE18200	Ø18 x 200	60	24	10	20	8423533845672
	t_fix- Max. fixture thickness60 SW - Installation key24 d_f - Ø Element to fix22 T_ins - Torque (Nm)90 h_nom - Min. anchor depth140 h₁ - Drill hole depth min.160 d₀ - Ø Drill18 h_min- Min. substrate thickness225 L - Lenght200
