Products / Anchors / Metal fixings / TX / TXT
TXT
TXT
TXT
TXT
TXT
TXT
TXT
TXT
TXT
TXT
TXT
TXT
TXT
TXT
TXT
TXT
TXT
TXT
TXT
TXT

Bimetal concrete screw anchor (Stainless steel A4 body and hardened carbon steel point). Opt.1 ETA Assessed. Truss head

Amplify information

Assessments and certificates

+ info
CodeDRILL Ø X LENGTHTHICKNESS MAX.FIXTURE [mm]Nº RECESSMin. Order Qty.Pcs. BoxPcs. MasterboxEANTechnical info.
TXT06040Ø6 x 405TX300501.2008423533918970

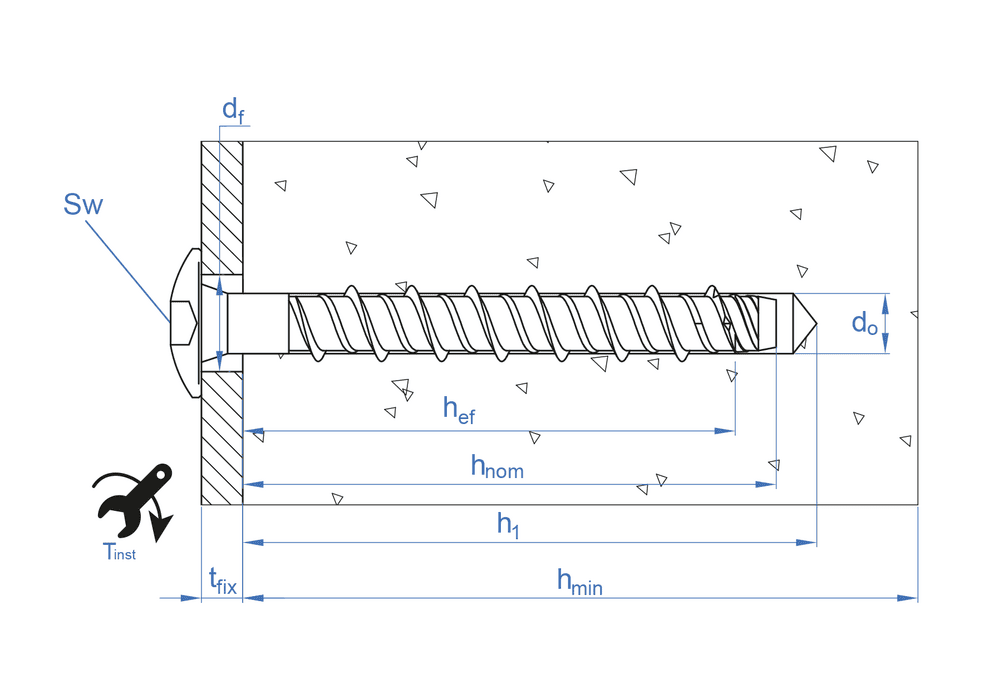

  • tfix - Max. fixture thickness5
  • SW - Installation keyTX30
  • df - Ø Element to fix9
  • Tins - Torque (Nm)10
  • hnom - Min. anchor depth35
  • h1 - Drill hole depth min.45
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness80
  • L - Lenght40
TXT06050Ø6 x 5015TX300501.2008423533918987
  • tfix - Max. fixture thickness15
  • SW - Installation keyTX30
  • df - Ø Element to fix9
  • Tins - Torque (Nm)10
  • hnom - Min. anchor depth35
  • h1 - Drill hole depth min.45
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness80
  • L - Lenght50
TXT06060Ø6 x 605TX300508008423533918994
  • tfix - Max. fixture thickness5
  • SW - Installation keyTX30
  • df - Ø Element to fix9
  • Tins - Torque (Nm)10
  • hnom - Min. anchor depth55
  • h1 - Drill hole depth min.65
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness80
  • L - Lenght60
TXT06080Ø6 x 8025TX300508008423533924469
  • tfix - Max. fixture thickness25
  • SW - Installation keyTX30
  • df - Ø Element to fix9
  • Tins - Torque (Nm)10
  • hnom - Min. anchor depth55
  • h1 - Drill hole depth min.65
  • d0 - Ø Drill6
  • hmin - Min. substrate thickness80
  • L - Lenght80

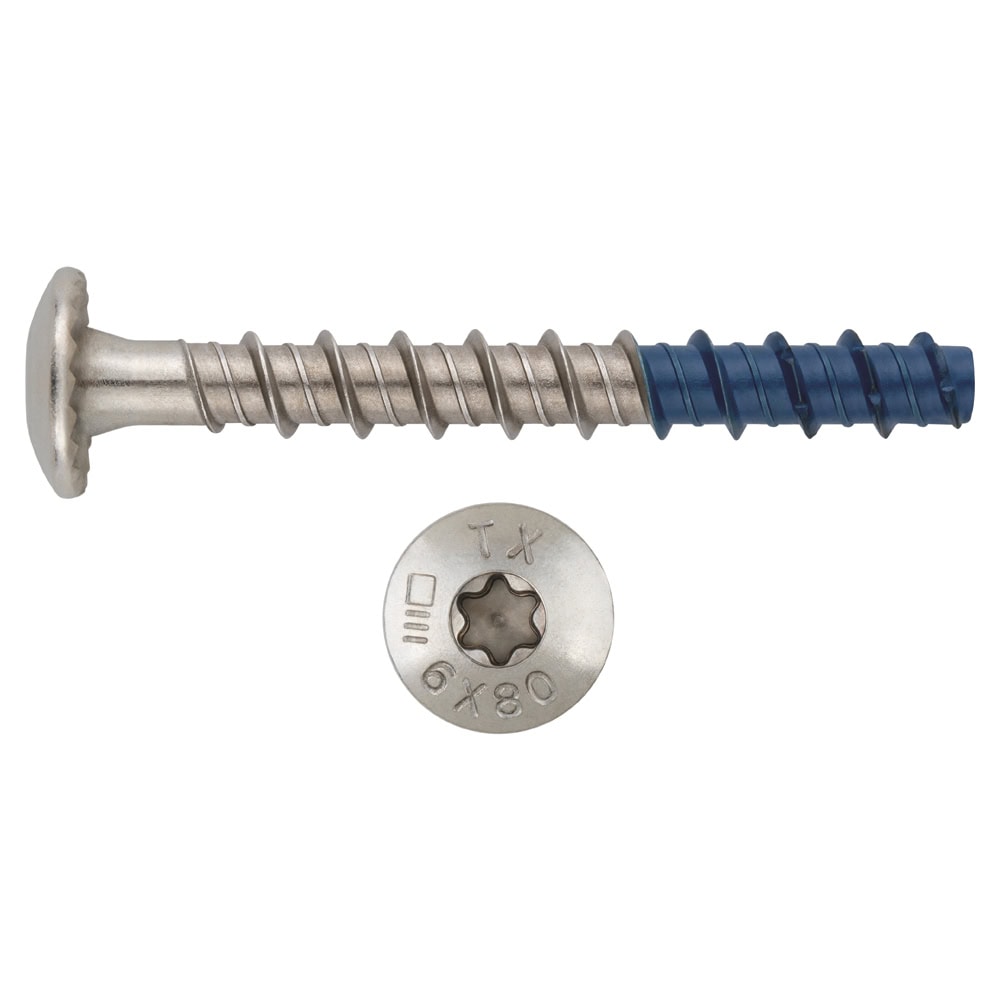

  • [CONCRETE SCREW WITH TRUSS HEAD] Screw for cracked and uncracked concrete, with a truss head and TX drive. Direct-fix anchorage, which cuts its own thread during installation. Its patented double thread is capable of embedding itself in the concrete and ensuring maximum load-bearing capacity. The Truss head provides a larger bearing surface than other types of screws, allowing the load to be distributed more evenly.
  • [HIGH-LOAD ANCHOR] Designed for structural and non-structural fixings in concrete. It can be used to install elements such as balustrades and handrails, shelving and racks, or glazing and windows.
  • [REMOVABLE AND EASY TO INSTALL] It is a fully removable anchor, perfect for temporary installations or when the surface needs to be left completely clear after removal.

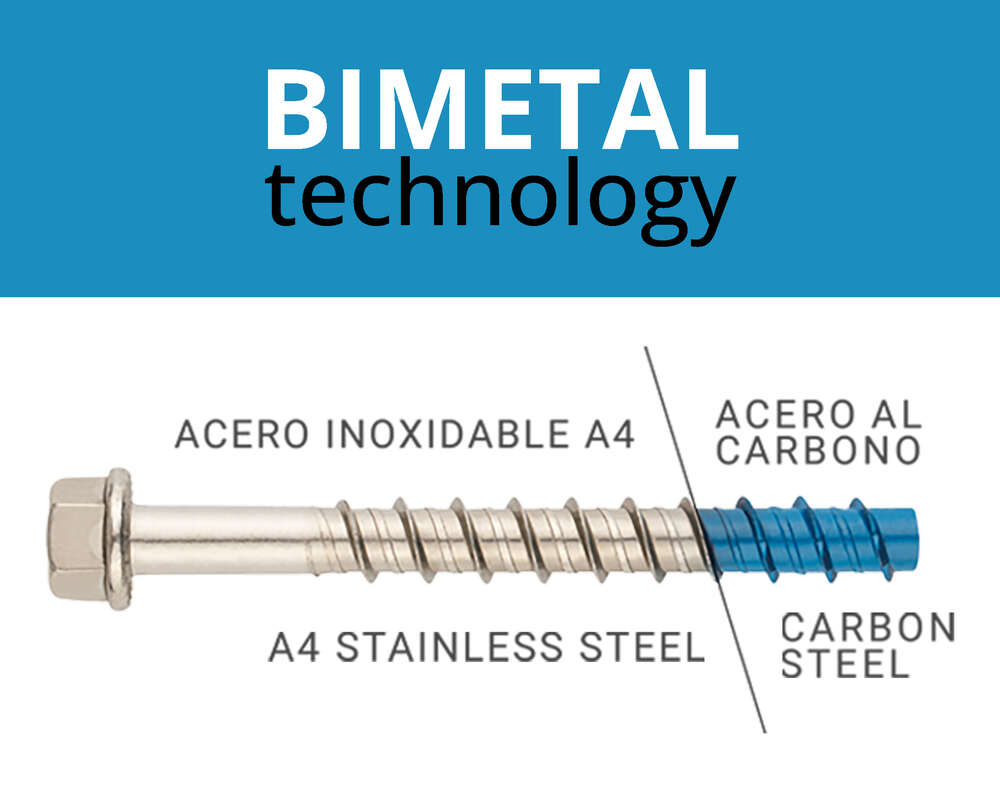

  • [BIMETAL TECHNOLOGY] It is manufactured using innovative BIMETAL technology. The body is made from A4 stainless steel, which offers high resistance to corrosion and rust, up to corrosion class C5. The tip is made from hardened carbon steel, which reduces wear on the anchor during installation.
  • [APPROVED] It has ETA approval for use in both cracked and non-cracked concrete, seismic class C1 and fire resistance.
Amplify information
PR964BI15523 CP TXT TXT SZ4
TXT
icon book
Technical Sheets
FT_TXE_en_rev3.pdf
FTA_TXE_en_rev0.pdf
icon security
Assessments
VdS_rev2.pdf
ETA_THE_en_rev9.pdf
icon table
Declaration of Performances
DoP_THE_en_rev11.pdf
icon book2
Sales brochures
FOLTHEN25_Brochure_Concrete_Screw_EN_v2.pdf
icon cad 48
CAD Data
TX.rar
