Products / Installation Systems / Heavy metal clamps / AB-M8 / AB-M8
AB-M8
AB-M8

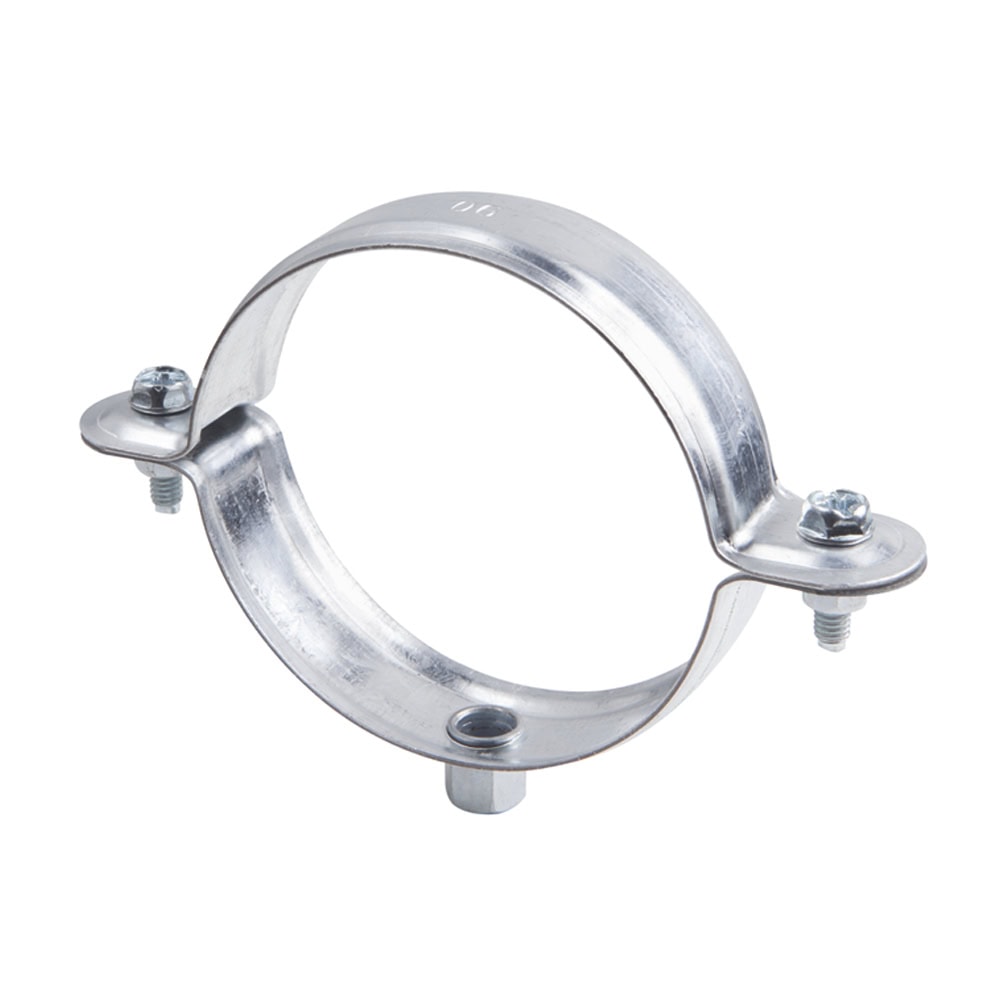

Drainpipe clamp M8 AB-M8

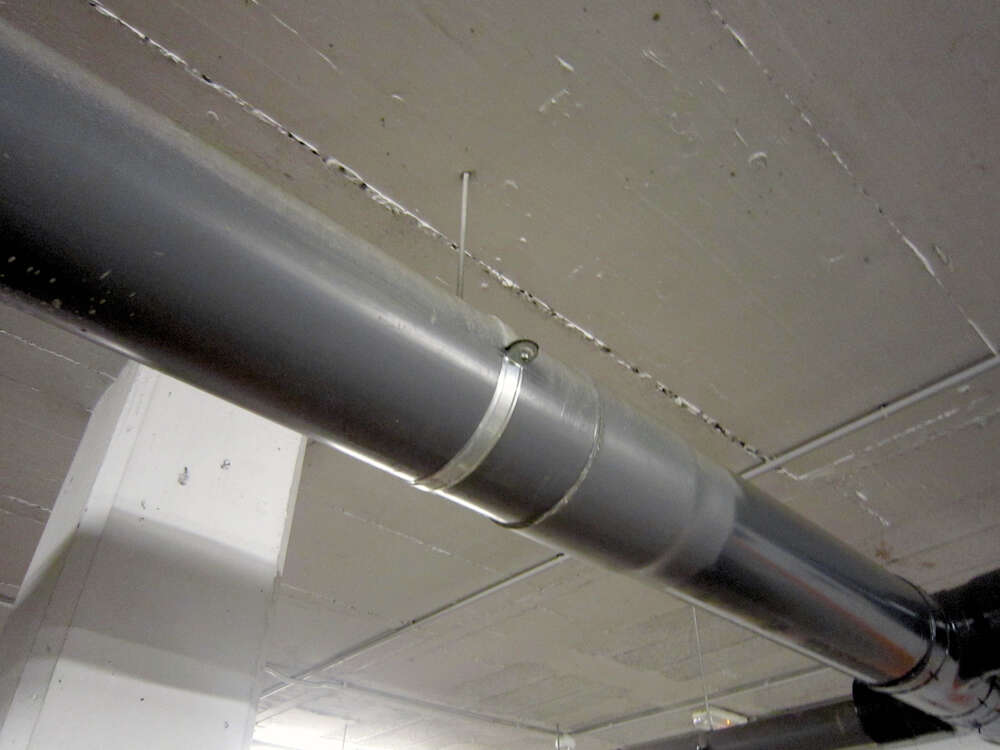

Clamp especially suitable for securing PVC drain pipes. It has an M8 riveted nut for installation and side screws with plastic washers to prevent them from getting lost. It allows quick and easy installation of drainage systems. It can be used with pipes from Ø50 to Ø315 mm (depending on the model). It is made of zinc-coated steel.
Product variants

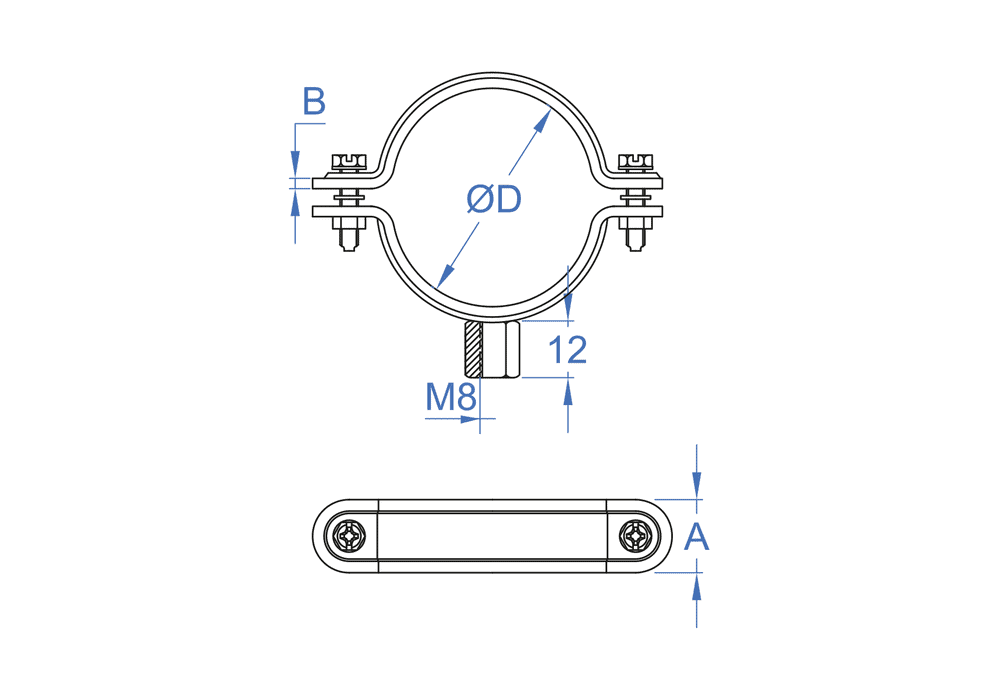

CodeSizeØ D [mm]MAXIMUN LOADPcs. BoxEANTechnical info.
ABM805050 (M8)49 - 541001008423533223609
ABM806363 (M8)60 - 651001008423533223708
ABM807575 (M8)75 - 801001008423533223807
ABM809090 (M8)88 - 921001008423533223906
ABM8110110 (M8)108 - 1131001008423533224002
ABM8125125 (M8)124 - 1301001008423533224101
ABM8160160 (M8)159 - 1651001008423533224200
ABM8200200 (M8)199 - 2031001008423533224309
ABM8250250 (M8)249 - 254100508423533224408
ABM8315315 (M8)314 - 319100508423533224507
