AB-RI
AB-RI
AB-RI

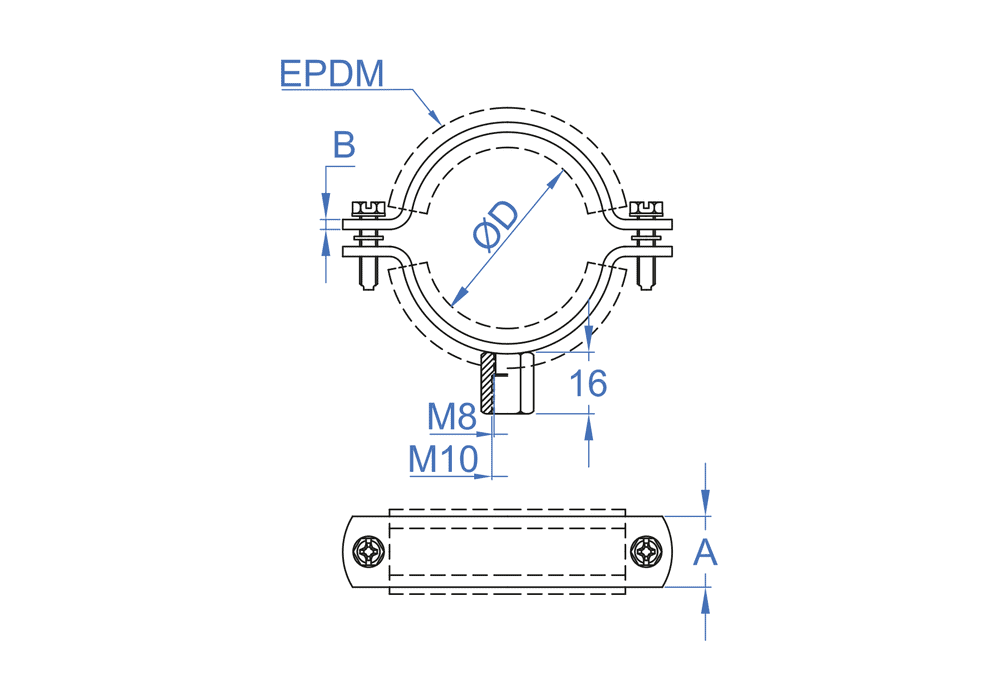

Reinforced isophonic clamp M8+M10 AB-RI

Reinforced isophonic clamp, designed to secure plastic or metal ventilation pipes between Ø18 and Ø355 mm (depending on the model). It can be used in water supply or drainage systems and for transporting diesel fuel, among other applications. It has a welded double thread nut M8-M10 and an EPDM insulating rubber ring that reduces noise and vibrations. It complies with the Technical Building Code and DIN-4109 noise insulation standard. It is made of zinc-plated steel.

Assessments and certificates

+ info
  • EN ISO 3822-1
Product variants
CodeSizeØ D [mm]MAXIMUN LOADPcs. BoxPcs. MasterboxEANTechnical info.
ABRI01818 (M8+M10)15 - 1980502008423533221407
ABRI02222 (M8+M10)20 - 2580501508423533221506
ABRI02828 (M8+M10)26 - 3080501508423533221605
ABRI03535 (M8+M10)32 - 3680501008423533221704
ABRI04040 (M8+M10)38 - 438025758423533221803
ABRI04848 (M8+M10)47 - 518025758423533221902
ABRI05454 (M8+M10)53 - 568025508423533222008
ABRI06060 (M8+M10)60 - 648025508423533222107
ABRI07070 (M8+M10)68 - 72802508423533222206
ABRI07575 (M8+M10)75 - 801502508423533222305
ABRI08383 (M8+M10)81 - 861502508423533222404
ABRI09090 (M8+M10)87 - 921502508423533222503
ABRI100100 (M8+M10)99 - 1051502508423533222602
ABRI110110 (M8+M10)107 - 1121502508423533222701
ABRI115115 (M8+M10)113 - 1182002508423533222800
ABRI125125 (M8+M10)125 - 1302002508423533222909
ABRI133133 (M8+M10)132 - 1372002508423533223005
ABRI140140 (M8+M10)138 - 1422002508423533223104
ABRI150150 (M8+M10)148 - 1522002508423533223203
ABRI160160 (M8+M10)159 - 1662002508423533223302
ABRI180180 (M8+M10)179 - 1842002508423533045775
ABRI200200 (M8+M10)196 - 2032002508423533223401
ABRI220220 (M8+M10)215 - 2262002508423533223500
ABRI250250 (M8+M10)245 - 2542002508423533045782
ABRI280280 (M8+M10)278 - 2842002508423533831620
ABRI300300 (M8+M10)299 - 3042002508423533045812
ABRI315315 (M8+M10)314 - 3192002508423533045829
ABRI355355 (M8+M10)354 - 3592002508423533045836
