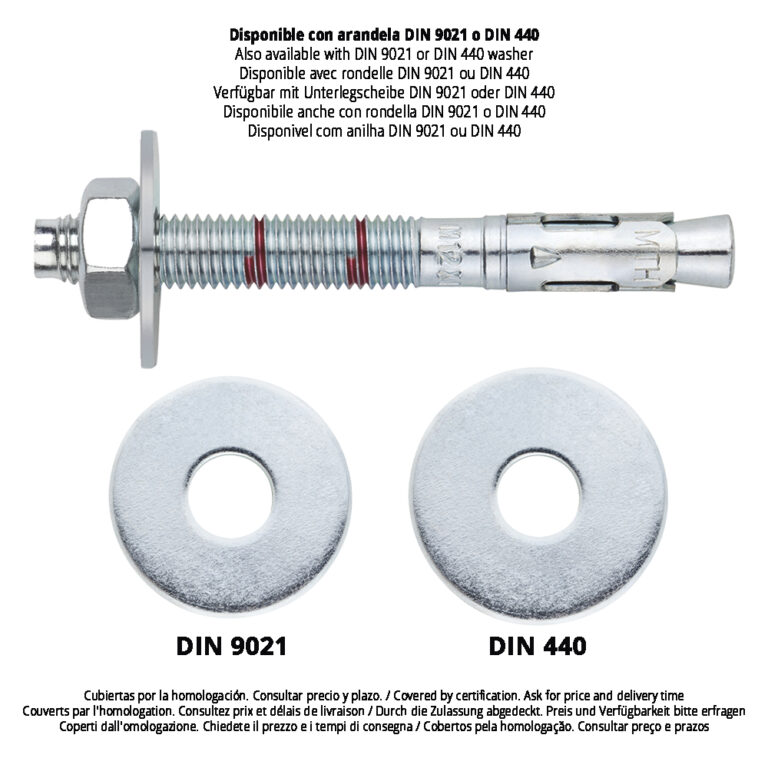

Zinc-plated through bolt anchor MTH

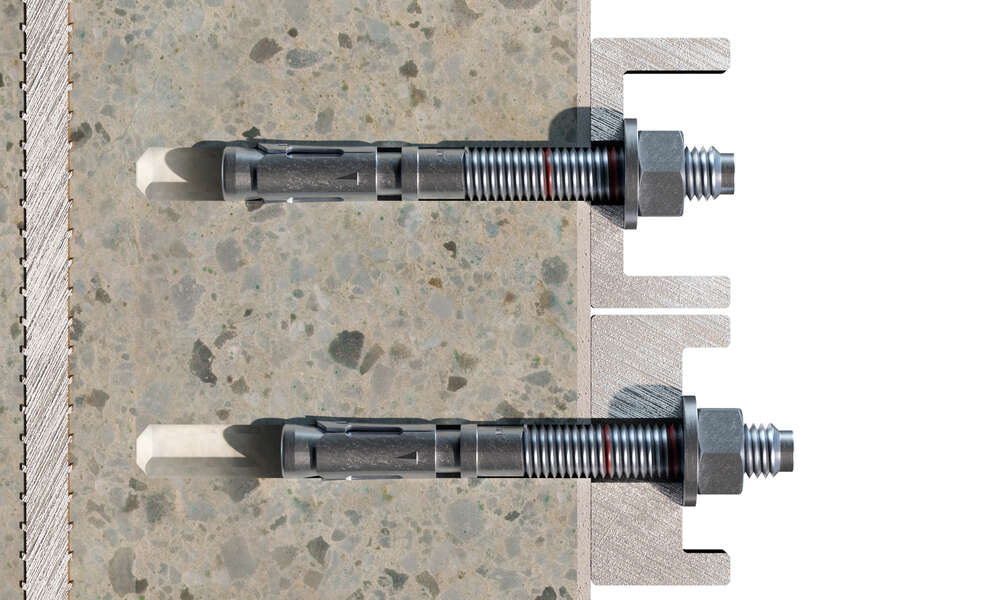

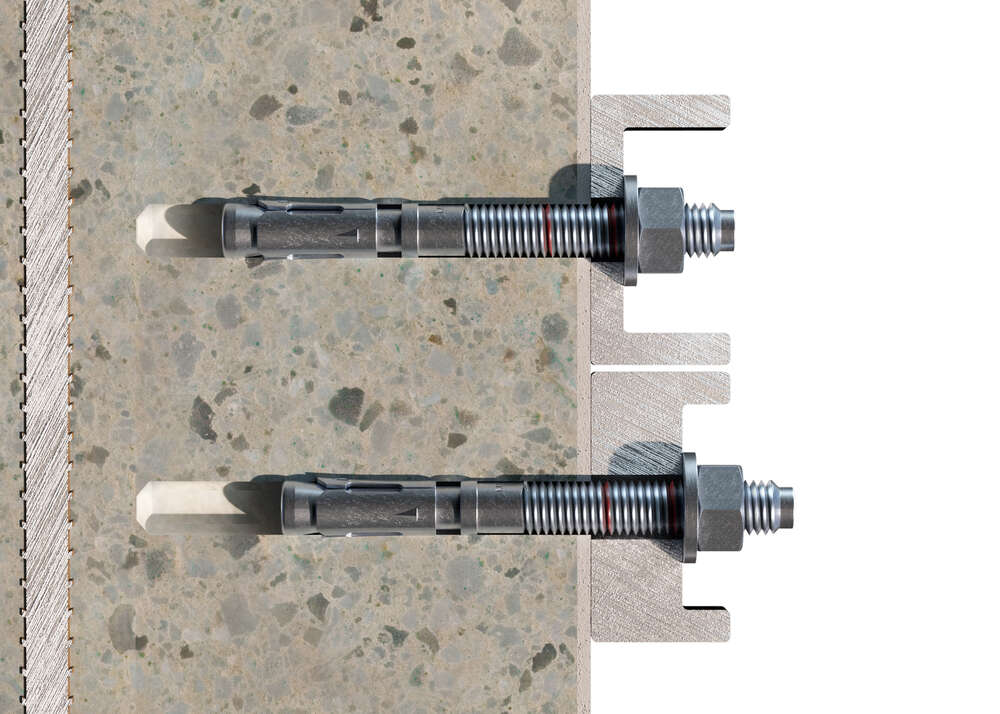

Metal expansion anchor for fixing high load-bearing elements on non-cracked concrete. Installation by controlled torque. ETE Opt.7 assessed for structural applications. Zinc plated steel shaft and clips.
Amplify information

Assessments and certificates

+ info
  • ETA UN 05-0242
  • CE 2005
  • Fire restistant
Product variants

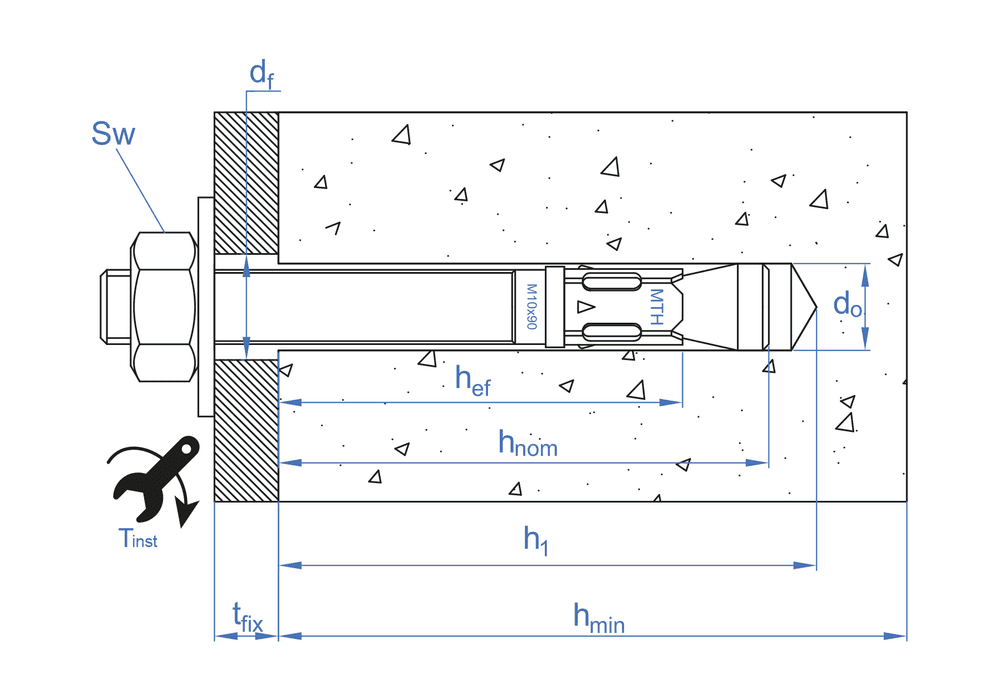

CodeSizeTHICKNESS MAX.FIXTURE [mm]MIN. SUBSTRATE THICKNESSAXIS LETTER (LENGTH)Pcs. BoxPcs. MasterboxEANTechnical info.
AH06060M6 x 60 Ø62100B2001.2008423533574909
AH06070M6 x 70 Ø612100C2001.2008423533574916
AH06080M6 x 80 Ø622100D2001.2008423533574923
AH06090M6 x 90 Ø632100E2001.2008423533574930
AH06100M6 x 100 Ø642100E2008008423533574947
AH06110M6 x 110 Ø652100F2008008423533574954
AH06120M6 x 120 Ø662100G1006008423533574961
AH06130M6 x 130 Ø672100H1006008423533574978
AH06140M6 x 140 Ø682100I1004008423533574985
AH06150M6 x 150 Ø692100I1004008423533574992
AH06160M6 x 160 Ø6102100J1004008423533575005
AH06170M6 x 170 Ø6112100K1004008423533575012
AH06180M6 x 180 Ø6122100L1002008423533575029
AH08060M8 x 60 Ø83100B1006008423533684912
AH08075M8 x 75 Ø85100C1006008423533575036
AH08090M8 x 90 Ø820100E1006008423533575043
AH08100M8 x 100 Ø830100E1004008423533749956
AH08115M8 x 115 Ø845100G1004008423533575050
AH08120M8 x 120 Ø850100G1004008423533041661
AH08130M8 x 130 Ø860100H1004008423533575067
AH08155M8 x 155 Ø885100J1002008423533575074
AH10070M10 x 70 Ø103100C1004008423533684714
AH10080M10 x 80 Ø1013100D1004008423533702166
AH10090M10 x 90 Ø1010110E1004008423533575081
AH10100M10 x 100 Ø1020110E1004008423533702173
AH10120M10 x 120 Ø1040110G503008423533575098
AH10140M10 x 140 Ø1060110H502008423533041760
AH10150M10 x 150 Ø1070110I502008423533575104
AH10160M10 x 160 Ø1080110J502008423533041821
AH10170M10 x 170 Ø1090110K502008423533575111
AH10210M10 x 210 Ø10130110N501508423533684929
AH10230M10 x 230 Ø10150110P501008423533684936
AH12090M12 x 90 Ø1213100E502008423533684943
AH12100M12 x 100 Ø128130E502008423533702197
AH12110M12 x 110 Ø1218130F502008423533575128
AH12120M12 x 120 Ø1228130G502008423533702203
AH12130M12 x 130 Ø1238130H502008423533749994
AH12140M12 x 140 Ø1248130H502008423533575135
AH12160M12 x 160 Ø1268130J501008423533575142
AH12180M12 x 180 Ø1288130L501508423533575159
AH12200M12 x 200 Ø12108130M501008423533743374
AH12220M12 x 220 Ø12128130O501008423533684950
AH12250M12 x 250 Ø12158130Q25508423533684967
AH12280M12 x 280 Ø12188130S25508423533938138
AH12300M12 x 300 Ø12208130S25508423533938145
AH12320M12 x 320 Ø12228130T20608423533938152
AH14120M14 x 120 Ø1412150G251008423533575166
AH14145M14 x 145 Ø1437150I251008423533575173
AH14170M14 x 170 Ø1462150K251008423533575180
AH14220M14 x 220 Ø14112150O25758423533684974
AH14250M14 x 250 Ø14142150Q25508423533684981
AH16125M16 x 125 Ø163168G251008423533575197
AH16145M16 x 145 Ø1623168I251008423533575203
AH16170M16 x 170 Ø1648168K25508423533575210
AH16220M16 x 220 Ø1698168O25508423533684998
AH16250M16 x 250 Ø16128168Q25508423533685001
AH16280M16 x 280 Ø16158168S25508423533685018
AH16320M16 x 320 Ø16198168T15458423533938169
AH20170M20 x 170 Ø2023206K20408423533575227
AH20220M20 x 220 Ø2073206O20408423533685025
AH20270M20 x 270 Ø20123206S20408423533685032
