Products / Anchors / Metal fixings / TX / TXA
TXA
TXA
TXA
TXA
TXA
TXA
TXA
TXA
TXA
TXA
TXA

Direct Fixing Anchor to Concrete Bimetal with Countersunk Head TXA

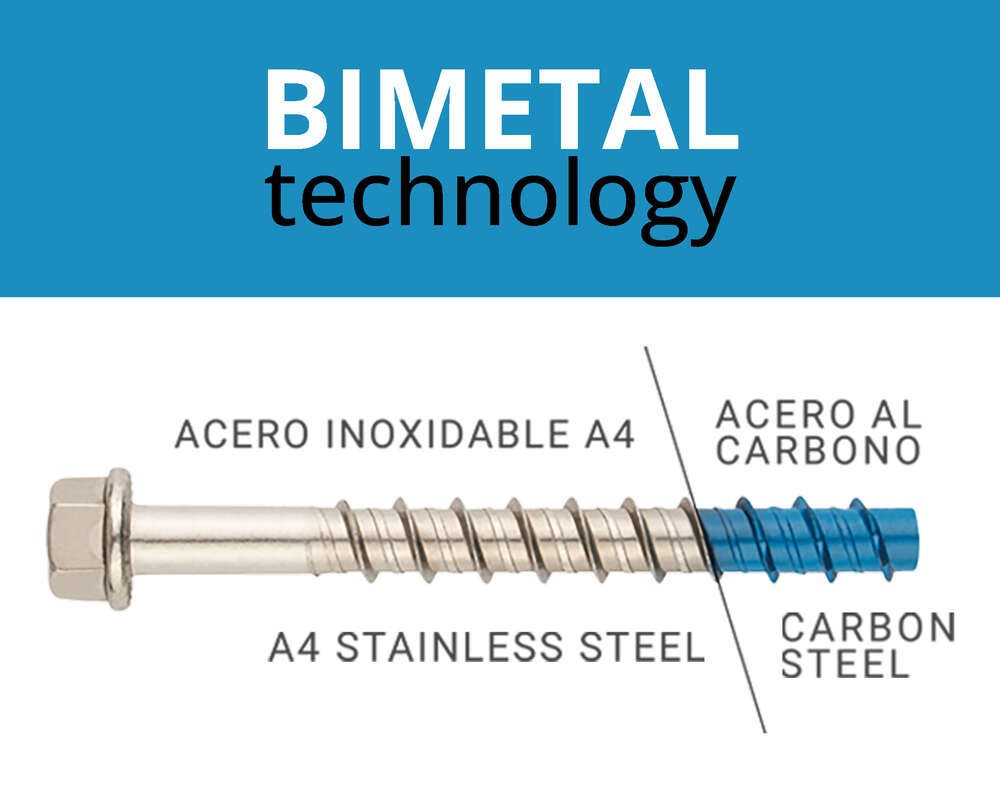

Direct fixing screw with countersunk head. Suitable for fixing high-load elements in cracked and non-cracked concrete. Removable and reusable. ETE Opt.1 approved. The countersunk head allows the screw to be flush with the surface after installation. Bimetal technology: A4 stainless steel body and hardened carbon steel tip.
Amplify information

Assessments and certificates

+ info
  • ETA CU 20-0046
  • CE 2023
  • Fire restistant
  • SEISMIC C1
  • VDS
Product variants

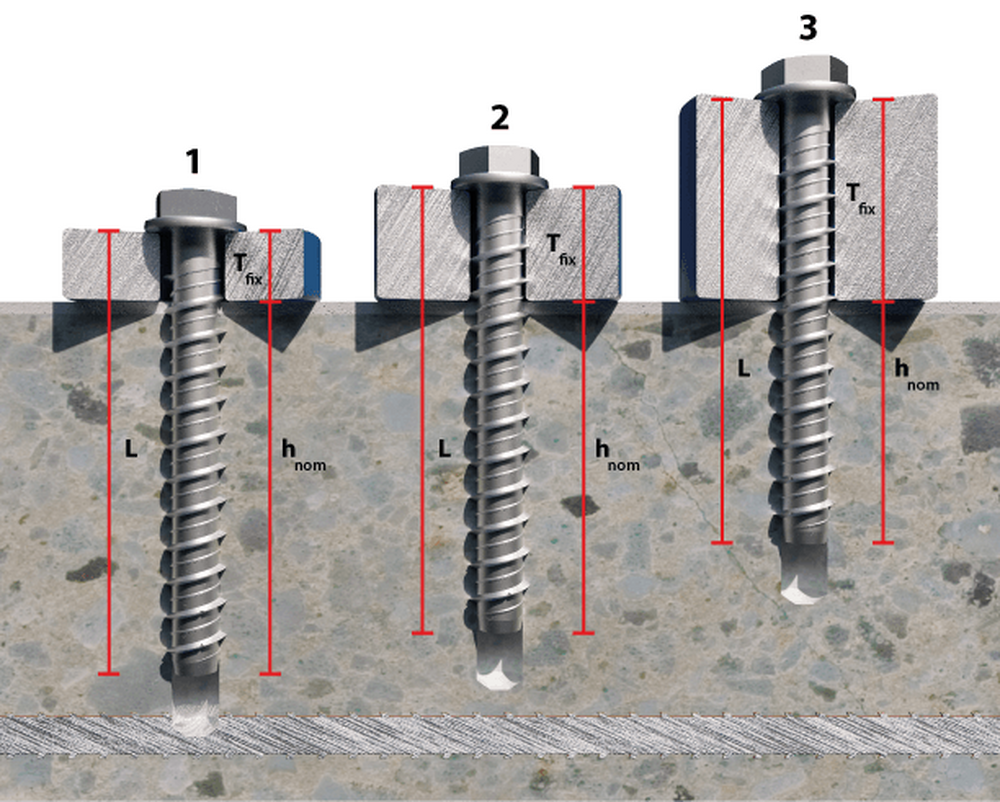

CodeDRILL Ø X LENGTHTHICKNESS MAX.FIXTURE [mm]Nº RECESSPcs. BoxPcs. MasterboxEANTechnical info.
TXA06050Ø6X5015TX30501.2008423533924483
TXA06060Ø6X605TX30506008423533924520
TXA06080Ø6X8025TX30506008423533924537
TXA06100Ø6X10045TX30506008423533924544
TXA08060Ø8 x 6010TX45502008423533855855
TXA08080Ø8 x 8015TX45254008423533855862
TXA08120Ø8 x 12055TX45254008423533855879
TXA10070Ø10 x 7015TX50502008423533855886
TXA10090Ø10 x 905TX50253008423533855893
TXA10120Ø10 x 12035TX50252008423533855909
