Products / Anchors / Metal fixings / TH / THA
THA
THA
THA
THA
THA
THA
THA
THA
THA

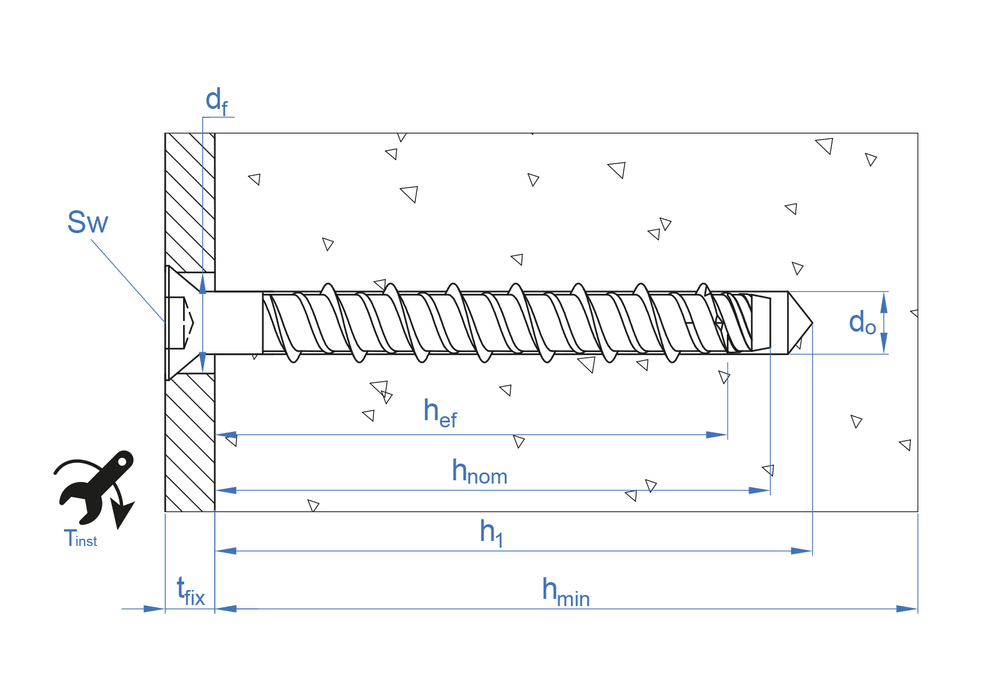

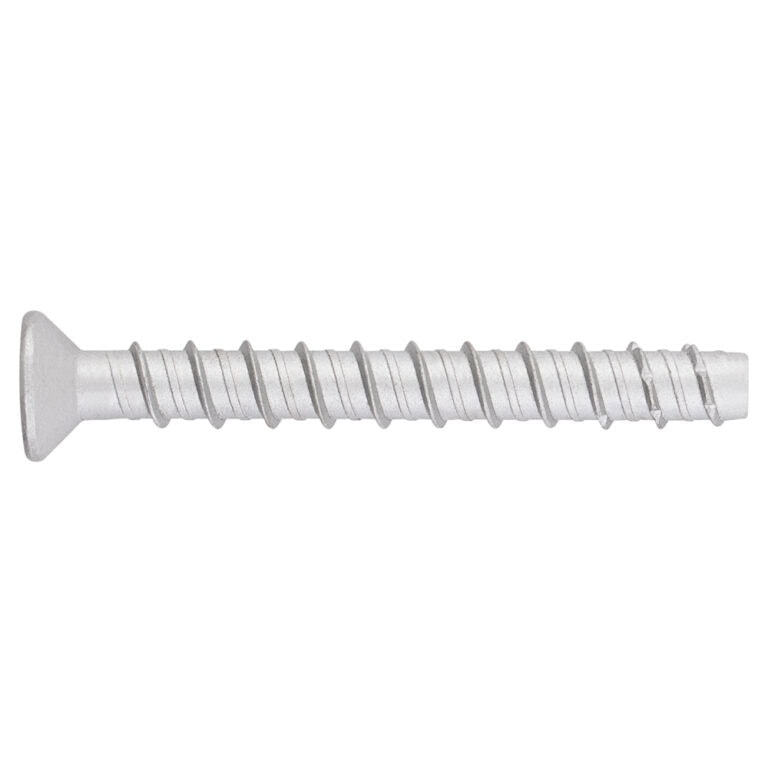

Concrete screw anchor with countersunk head THA

Direct fixing screw anchor with countersunk head. For high loads in cracked and non-cracked concrete. Removable and reusable. ETE Opt.1 approved. Made of ATLANTIS C3-H coated steel.
Amplify information

Assessments and certificates

+ info
  • ETA CU 20-0046
  • ETA NS 20-0494
  • CE 2020
  • Fire restistant
  • SEISMIC C1
  • SEISMIC C1&C2
  • VDS
  • DIT 708p/26
Product variants
CodeDRILL Ø X LENGTHTHICKNESS MAX.FIXTURE [mm]Nº RECESSPcs. BoxPcs. MasterboxEANTechnical info.
THA05040Ø5 x 405TX251002.4008423533844859
THA05060Ø5 x 6015TX251001.2008423533844866
THA05080Ø5 x 8035TX25508008423533844873
THA05100Ø5 x 10055TX25508008423533844880
THA06045Ø6 x 4510TX301001.6008423533844897
THA06050Ø6 x 5015TX301001.2008423533844903
THA06060Ø6 x 605TX301001.2008423533844910
THA06080Ø6 x 8025TX301006008423533844927
THA06100Ø6 x 10045TX301006008423533907912
THA06120Ø6 x 12065TX301004008423533844934
THA06140Ø6 x 14085TX301006008423533844941
THA08060Ø8 x 6010TX45502008423533844958
THA08080Ø8 x 8015TX45254008423533844965
THA08100Ø8 x 10035TX45254008423533844972
THA08120Ø8 x 12055TX45254008423533844989
THA10100Ø10 x 10015TX50253008423533844996
THA10120Ø10 x 12035TX50252008423533845009
