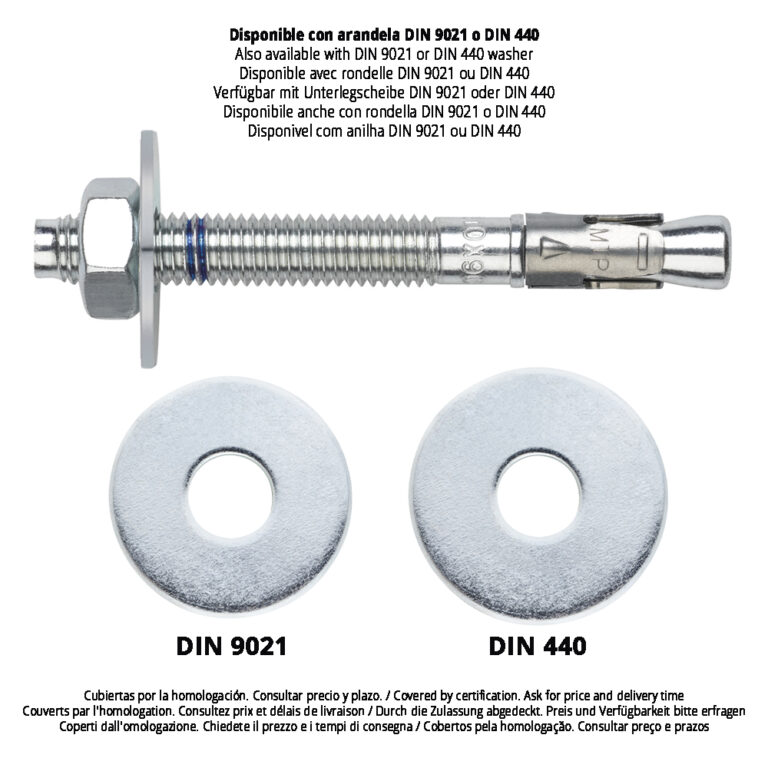

Assessed through bolt anchor MTP

Through bolt anchor for high loads in cracked and non-cracked concrete. It works by controlled torque expansion, zinc plated steel shaft and stainless steel clip, ETE Opt.1 assessed, which ensures its performance in structural fastenings on concrete.
Amplify information

Assessments and certificates

+ info
  • ETA CU 12-0397
  • CE 2012
  • Fire restistant
  • VDS
  • SEISMIC C1
  • SEISMIC C1&C2
Non-approved size
Product variants
CodeSizeTHICKNESS MAX.FIXTURE [mm]MIN. SUBSTRATE THICKNESSAXIS LETTER (LENGTH)Pcs. BoxPcs. MasterboxEANTechnical info.
AP08050 M8 x 50 Ø82100A1008008423533710505
AP08075M8 x 75 Ø89100C1006008423533710512
AP08095M8 x 95 Ø829100E1006008423533710529
AP08115M8 x 115 Ø849100G1004008423533710536
AP10090M10 x 90 Ø1010120E1004008423533710543
AP10105M10 x 105 Ø1025120F503008423533710550
AP10115M10 x 115 Ø1035120G502008423533710567
AP10135M10 x 135 Ø1055120H502008423533710574
AP10165M10 x 165 Ø1085120K502008423533710581
AP10185M10 x 185 Ø10105120L501508423533710598
AP12080 M12 x 80 Ø124100D503008423533710604
AP12100M12 x 100 Ø124140E502008423533749932
AP12110M12 x 110 Ø1214140F502008423533710611
AP12120M12 x 120 Ø1224140G502008423533710628
AP12130M12 x 130 Ø1234140H502008423533710635
AP12150M12 x 150 Ø1254140I501008423533710642
AP12180M12 x 180 Ø1284140L501508423533710659
AP12200M12 x 200 Ø12104140M501508423533710666
AP16145M16 x 145 Ø1628170I251008423533710673
AP16175M16 x 175 Ø1658170K25508423533710680
AP16220M16 x 220 Ø16103170O25508423533710697
AP16250M16 x 250 Ø16133170Q25508423533710703
AP20170M20 x 170 Ø2032200K20408423533710710
AP20200M20 x 200 Ø2062200N20408423533710727
AP24205M24 x 205 Ø2435250N10308423533783738
AP24235M24 x 235 Ø2465250P10208423533783745
