Produkte / Verankerungen / Metallanker / TH / Produkte / THP
THP
THP
THP
THP
THP

Betonschraube mit Rundkopf THP

Bolzenanker mit Linsenkopf, geeignet für die Befestigung von hochtragenden Elementen in gerissenem und ungerissenem Beton. Abnehmbar und wiederverwendbar. ETE Opt.1 zugelassen. Hergestellt aus verzinktem Stahl +I99+I98:M98
Informationen verstärken

Zulassungen und zertifikate

+ info
  • ETA CU 20-0046
  • ETA NS 20-0494
  • CE 2020
  • Feuerbeständig
  • SEISMIC C1
  • SEISMIC C1&C2
  • VDS
  • DIT 708p/26
Produktvarianten

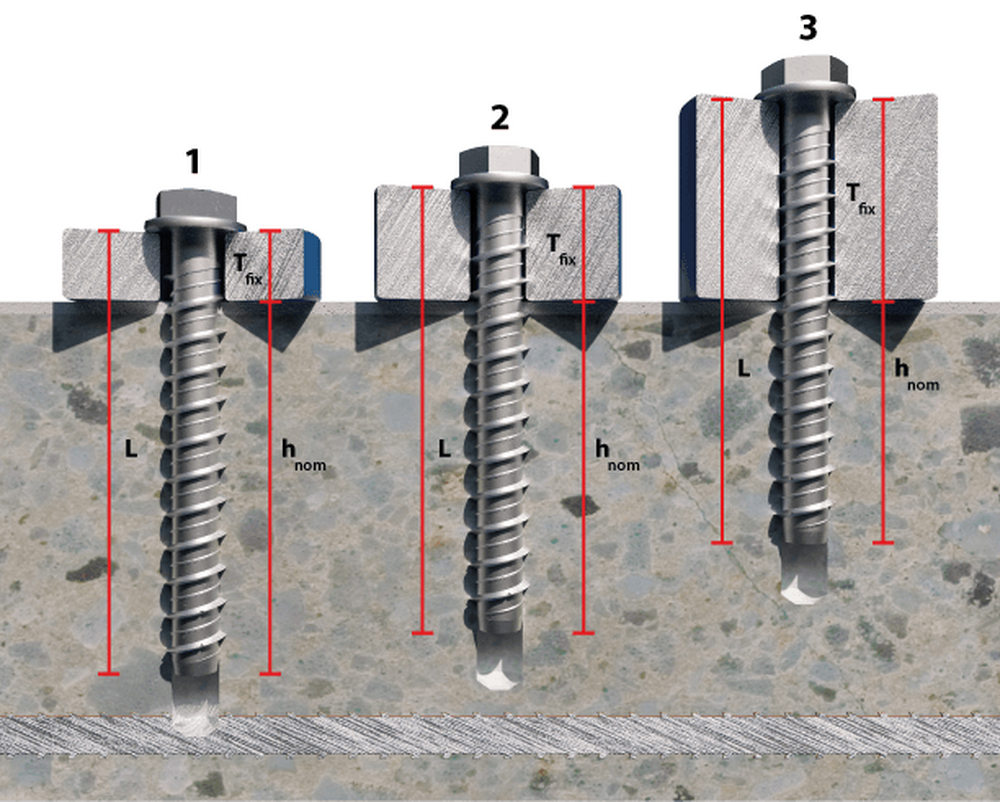

CodeBOHRER Ø X LÄNGEKLEMMSTÄRKE [mm]Nº ANTRIEBStk. VerpackungStk. UmverpackungEANTechnische Info.
THP05040Ø5 x 405TX301002.4008423533845047
THP05060Ø5 x 6015TX301001.2008423533845061
THP06040Ø6 x 405TX401001.2008423533479761
THP06050Ø6 x 5015TX401001.2008423533845078
THP06060Ø6 x 605TX401001.2008423533845085
THP06080Ø6 x 8025TX40506008423533845092
THP06100Ø6 x 10045TX40502008423533845108
THP08060Ø8 x 6010TX45254008423533845115
THP08080Ø8 x 8015TX45253008423533845122
