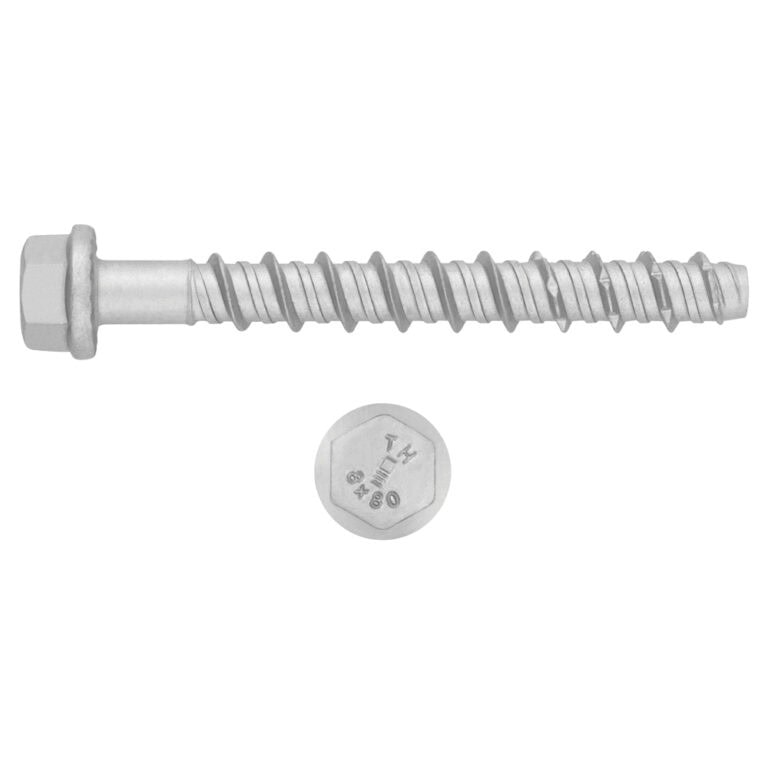

Betonschraube mit Sechskantkopf THE

Betonschraube mit Sechskantkopf für hohe Belastungen in gerissenem und ungerissenem Beton. Abnehmbar und wiederverwendbar. ETE Opt.1 zugelassen, aus Stahl mit ATLANTIS C3-H Beschichtung.
Informationen verstärken

Zulassungen und zertifikate

+ info
  • ETA CU 20-0046
  • ETA NS 20-0494
  • CE 2020
  • Feuerbeständig
  • SEISMIC C1
  • SEISMIC C1&C2
  • VDS
  • DIT 708p/26
Produktvarianten

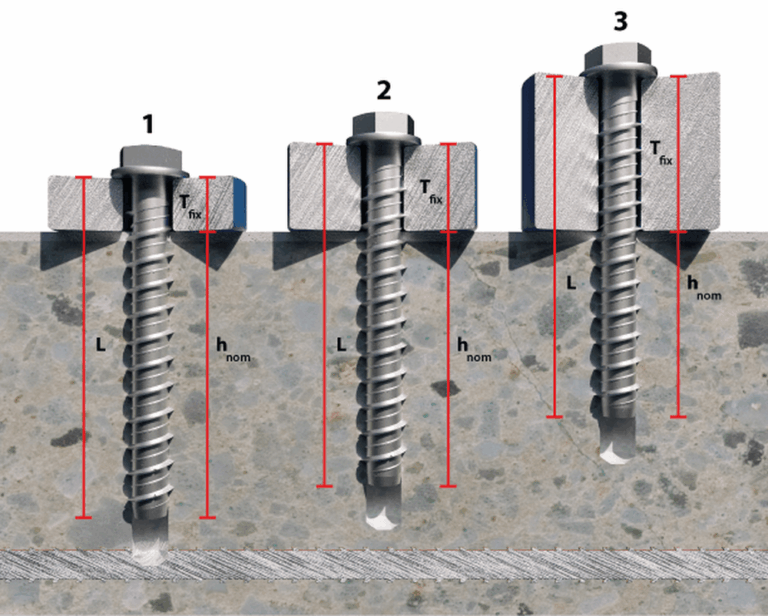

CodeBOHRER Ø X LÄNGEKLEMMSTÄRKE [mm]Nº ANTRIEBStk. VerpackungStk. UmverpackungEANTechnische Info.
THE05040Ø5 x 40581002.4008423533844453
THE05050Ø5 x 50581001.6008423533827678
THE05060Ø5 x 601581001.6008423533844460
THE05080Ø5 x 80358508008423533827685
THE05100Ø5 x 100558508008423533844477
THE06035Ø6 x 35--101001.6008423533918192
THE06040Ø6 x 405101001.6008423533844484
THE06045Ø6 x 4510101001.2008423533918208
THE06050Ø6 x 5015101001.2008423533844491
THE06060Ø6 x 605101001.2008423533844507
THE0606010Ø6 x 60510102408423533926234
THE06070Ø6 x 701510506008423533844514
THE06080Ø6 x 802510508008423533830456
THE06100Ø6 x 1004510254008423533844521
THE06120Ø6 x 1206510254008423533844538
THE08055Ø8 x 55513506008423533844545
THE08060Ø8 x 601013506008423533844552
THE08070Ø8 x 70513502008423533844569
THE08075Ø8 x 751013254008423533918215
THE08080Ø8 x 801513254008423533844576
THE08090Ø8 x 902513254008423533827692
THE08100Ø8 x 1003513254008423533844583
THE08110Ø8 x 1104513254008423533844590
THE08120Ø8 x 1205513254008423533844606
THE08140Ø8 x 1407513253008423533844613
THE10060Ø10 x 60515502008423533844620
THE10070Ø10 x 701515502008423533844637
THE10080Ø10 x 802515503008423533844644
THE10090Ø10 x 90515253008423533844651
THE10100Ø10 x 1001515253008423533844668
THE10120Ø10 x 1203515252008423533827708
THE10140Ø10 x 1405515251008423533844675
THE10160Ø10 x 1607515251008423533918222
THE10180Ø10 x 1809515251008423533918239
THE12080Ø12 x 80518251008423533844682
THE12090Ø12 x 901518251008423533844699
THE12100Ø12 x 1002518251008423533918246
THE12110Ø12 x 110518251008423533844705
THE12130Ø12 x 1302518251508423533827715
THE12150Ø12 x 1504518251008423533844712
THE14080Ø14 x 80521251508423533844729
THE14100Ø14 x 1002521251508423533844736
THE14110Ø14 x 1103521251008423533918253
THE14120Ø14 x 120521251008423533844743
THE14130Ø14 x 1301521251008423533844750
THE14140Ø14 x 1402521251008423533827722
THE14160Ø14 x 160452125508423533844767
THE16100Ø16 x 10020251008423533864703
THE16150Ø16 x 1503025758423533864710
THE18100Ø18 x 100102420808423533844774
THE18130Ø18 x 130402420408423533844781
THE18160Ø18 x 160202415308423533827739
THE18180Ø18 x 180402415308423533844798
THE18200Ø18 x 200602410208423533844804
