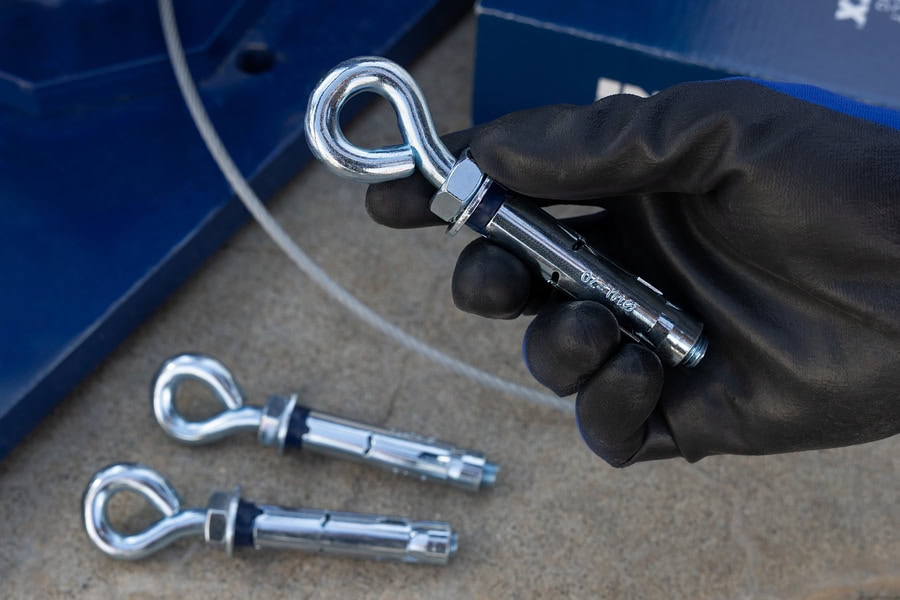

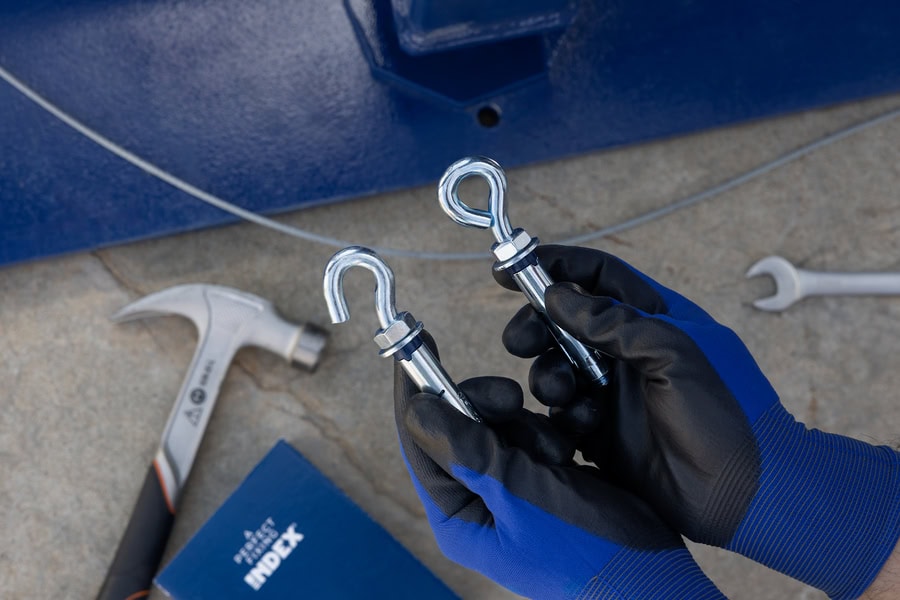

Anti-spin sleeve anchor with eye bolt CH-AR

Anti-spin sleeve anchor with eye bolt, designed for fixing medium-load elements in solid materials. It is equipped with anti-rotation devices that prevent rotation of the anchor during tightening. Mechanically expanding anchor and installation by controlled torque. Made of zinc plated steel.
Amplify information
> CAD Data
CODESIZENº RECESSAPERTURE HOOKEYE BOLT ØPcs BoxPcs/BlisterPcs/Window BoxPcs MasterboxBlisters/Bisters boxWindow boxes/MasterboxEANTechnical info.
ACHA08CM6 x 45 Ø8101006008423533584229
  • tfix - Max. fixture thickness-
  • SW - Installation key10
  • df - Ø Element to fix9
  • Tins - Torque (Nm)10
  • hef - Effective depth35
  • hnom - Min. anchor depth39
  • h1 - Drill hole depth min.45
  • d0 - Ø Drill8
  • hmin - Min. substrate thickness100
  • L - Lenght45
ACHA09CM6 x 45 Ø9101006008423533584236
  • tfix - Max. fixture thickness-
  • SW - Installation key10
  • df - Ø Element to fix10
  • Tins - Torque (Nm)10
  • hef - Effective depth35
  • hnom - Min. anchor depth39
  • h1 - Drill hole depth min.45
  • d0 - Ø Drill9
  • hmin - Min. substrate thickness100
  • L - Lenght45
ACHA10CM8 x 60 Ø10131004008423533584243
  • tfix - Max. fixture thickness-
  • SW - Installation key13
  • df - Ø Element to fix12
  • Tins - Torque (Nm)20
  • hef - Effective depth45
  • hnom - Min. anchor depth51
  • h1 - Drill hole depth min.60
  • d0 - Ø Drill10
  • hmin - Min. substrate thickness100
  • L - Lenght60
ACHA11CM8 x 60 Ø11131002008423533584250
  • tfix - Max. fixture thickness-
  • SW - Installation key13
  • df - Ø Element to fix13
  • Tins - Torque (Nm)20
  • hef - Effective depth45
  • hnom - Min. anchor depth51
  • h1 - Drill hole depth min.60
  • d0 - Ø Drill11
  • hmin - Min. substrate thickness100
  • L - Lenght60
ACHA12CM10 x 70 Ø1214502008423533584267
  • tfix - Max. fixture thickness-
  • SW - Installation key17
  • df - Ø Element to fix14
  • Tins - Torque (Nm)35
  • hef - Effective depth53
  • hnom - Min. anchor depth65
  • h1 - Drill hole depth min.75
  • d0 - Ø Drill12
  • hmin - Min. substrate thickness100
  • L - Lenght70
ACHA14CM10 x 70 Ø1414502008423533584274
  • tfix - Max. fixture thickness-
  • SW - Installation key17
  • df - Ø Element to fix16
  • Tins - Torque (Nm)35
  • hef - Effective depth53
  • hnom - Min. anchor depth65
  • h1 - Drill hole depth min.75
  • d0 - Ø Drill14
  • hmin - Min. substrate thickness100
  • L - Lenght70
ACHA16CM12 x 80 Ø1622251008423533584281
  • tfix - Max. fixture thickness-
  • SW - Installation key19
  • df - Ø Element to fix18
  • Tins - Torque (Nm)50
  • hef - Effective depth60
  • hnom - Min. anchor depth70
  • h1 - Drill hole depth min.80
  • d0 - Ø Drill16
  • hmin - Min. substrate thickness110
  • L - Lenght80
VACHA08CM6 x 45 Ø8101088423533753670
  • tfix - Max. fixture thickness-
  • SW - Installation key10
  • df - Ø Element to fix9
  • Tins - Torque (Nm)10
  • hef - Effective depth35
  • hnom - Min. anchor depth39
  • h1 - Drill hole depth min.45
  • d0 - Ø Drill8
  • hmin - Min. substrate thickness100
  • L - Lenght45
VACHA10CM8 x 60 Ø1013688423533753687
  • tfix - Max. fixture thickness-
  • SW - Installation key13
  • df - Ø Element to fix12
  • Tins - Torque (Nm)20
  • hef - Effective depth45
  • hnom - Min. anchor depth51
  • h1 - Drill hole depth min.60
  • d0 - Ø Drill10
  • hmin - Min. substrate thickness100
  • L - Lenght60
BZACHA08CM6 x 45 Ø8102158423533421791
  • tfix - Max. fixture thickness-
  • SW - Installation key10
  • df - Ø Element to fix9
  • Tins - Torque (Nm)10
  • hef - Effective depth35
  • hnom - Min. anchor depth39
  • h1 - Drill hole depth min.45
  • d0 - Ø Drill8
  • hmin - Min. substrate thickness100
  • L - Lenght45
BZACHA10CM8 x 60 Ø10132158423533421807
  • tfix - Max. fixture thickness-
  • SW - Installation key13
  • df - Ø Element to fix12
  • Tins - Torque (Nm)20
  • hef - Effective depth45
  • hnom - Min. anchor depth51
  • h1 - Drill hole depth min.60
  • d0 - Ø Drill10
  • hmin - Min. substrate thickness100
  • L - Lenght60
BZACHA12CM10 x 70 Ø12142108423533421814
  • tfix - Max. fixture thickness-
  • SW - Installation key17
  • df - Ø Element to fix14
  • Tins - Torque (Nm)35
  • hef - Effective depth53
  • hnom - Min. anchor depth65
  • h1 - Drill hole depth min.75
  • d0 - Ø Drill12
  • hmin - Min. substrate thickness100
  • L - Lenght70
