Products / Screws / Nails and bolts / AL / AL-RO

Threaded hook AL-RO

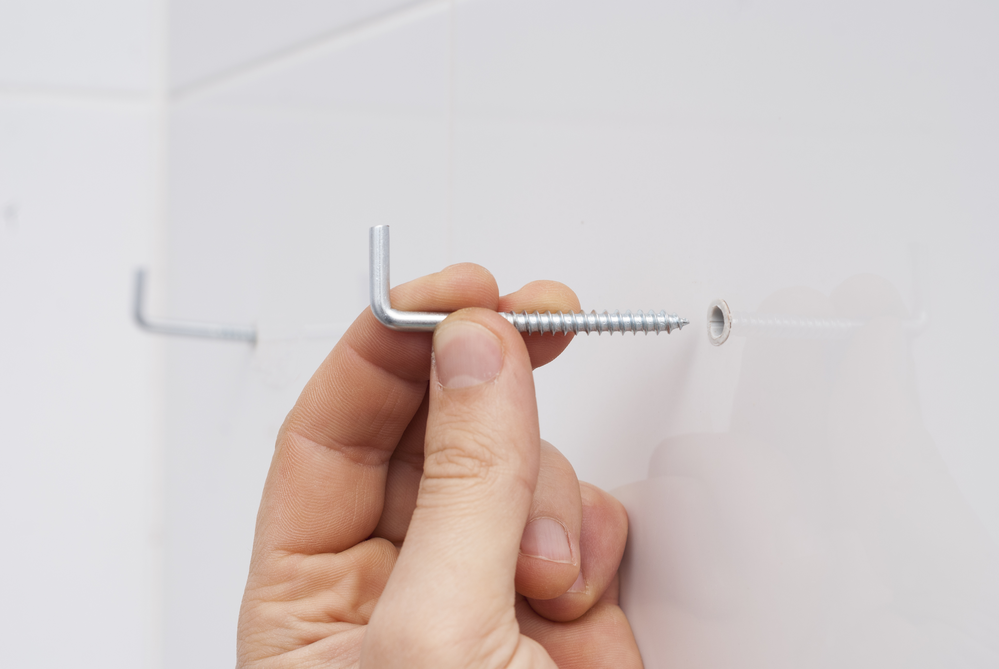

Threaded nail, also called threaded hook. It allows light items such as pictures or other decorative items to be fixed to wooden surfaces. When used with nylon plugs, it can be used on concrete walls or other materials. It is made of zinc-plated steel.

Code	Size	Ø D	L1	b	L2	d	Min. Order Qty.	Pcs. BoxPcs. BlisterPcs. Box	Pcs. MasterboxBlisters BoxBoxes Masterbox	EAN
ALRO14025	14x25 (2,6 x 17 x10)	2,6	17	10	10	2,6	0	500	22.500	8423533328205
	d1 - Ø (mm)2 nombre_web_en10
ALRO16030	16x30 (3,1 x 20 x 10)	3,1	20	12	10	3,1	0	300	13.500	8423533328304
	d1 - Ø (mm)2,4 nombre_web_en12
ALRO17040	17x40 (3,5 x 29 x 13)	3,5	29	17	13	3,5	0	300	7.200	8423533328403
	d1 - Ø (mm)2,7 nombre_web_en17
ALRO18040	18x40 (3,7 x 28 x 14)	3,7	28	17	14	3,7	0	300	7.200	8423533328502
	d1 - Ø (mm)2,9 nombre_web_en17
ALRO18050	18x50 (3,7 x 37 x 15)	3,7	37	22	15	3,7	0	300	7.200	8423533328601
	d1 - Ø (mm)2,9 nombre_web_en22
ALRO19050	19x50 (4,4 x 37 x 15)	4,4	37	22	15	4,4	0	200	4.800	8423533328700
	d1 - Ø (mm)3,4 nombre_web_en22
ALRO19060	19x60 (4,4 x 46 x 17)	4,4	46	28	17	4,4	0	200	4.800	8423533328809
	d1 - Ø (mm)3,4 nombre_web_en28
ALRO19070	19x70 (4,4 x 55 x 18)	4,4	55	33	18	4,4	0	200	2.400	8423533328908
	d1 - Ø (mm)3,4 nombre_web_en33
ALRO20060	20x60 (5 x 44 x 20)	5	44	26	20	5	0	200	2.400	8423533329004
	d1 - Ø (mm)3,9 nombre_web_en26
ALRO20070	20x70 (5 x 53 x 20)	5	53	32	20	5	0	200	1.600	8423533329103
	d1 - Ø (mm)3,9 nombre_web_en32
ALRO20080	20x80 (5 x 63 x 21)	5	63	38	21	5	0	200	2.400	8423533329202
	d1 - Ø (mm)3,9 nombre_web_en38
ALRO21080	21x80 (5,6 x 60 x 22)	5,6	60	36	22	5,6	0	200	2.400	8423533329318
	d1 - Ø (mm)4,4 nombre_web_en36
ALRO21090	21x90 (5,6 x 70 x 22)	5,6	70	42	22	5,6	0	200	800	8423533329417
	d1 - Ø (mm)4,4 nombre_web_en42
ALRO22100	22x100 (6 x 79 x 23)	6	79	47	23	6	0	100	1.200	8423533329509
	d1 - Ø (mm)4,7 nombre_web_en47
ALRO22110	22x110 (6 x 86 x 23)	6	86	52	23	6	0	100	1.200	8423533758927
	d1 - Ø (mm)4,7 nombre_web_en52
ALRO22120	22x120 (6 x 97 x 25)	6	97	58	25	6	0	50	800	8423533758934
	d1 - Ø (mm)4,7 nombre_web_en58
ALRO23130	23x130 (7,8 x 105 x 25)	7,8	105	63	25	7,8	0	50	600	8423533758941
	d1 - Ø (mm)5,8 nombre_web_en63
BZALRO14025	14x25 (2,6 x 17 x10)	2,6	17	10	10	2,6	0	25	20	8423533426864
	d1 - Ø (mm)2 nombre_web_en10
BZALRO16030	16x30 (3,1 x 20 x 10)	3,1	20	12	10	3,1	0	15	20	8423533426871
	d1 - Ø (mm)2,4 nombre_web_en12
BZALRO17040	17x40 (3,5 x 29 x 13)	3,5	29	17	13	3,5	0	15	20	8423533426888
	d1 - Ø (mm)2,7 nombre_web_en17
BZALRO18040	18x40 (3,7 x 28 x 14)	3,7	28	17	14	3,7	0	15	20	8423533426895
	d1 - Ø (mm)2,9 nombre_web_en17
BZALRO18050	18x50 (3,7 x 37 x 15)	3,7	37	22	15	3,7	0	15	20	8423533426901
	d1 - Ø (mm)2,9 nombre_web_en22
BZALRO19050	19x50 (4,4 x 37 x 15)	4,4	37	22	15	4,4	0	10	20	8423533426918
	d1 - Ø (mm)3,4 nombre_web_en22
BZALRO19060	19x60 (4,4 x 46 x 17)	4,4	46	28	17	4,4	0	10	20	8423533426925
	d1 - Ø (mm)3,4 nombre_web_en28
BZALRO19070	19x70 (4,4 x 55 x 18)	4,4	55	33	18	4,4	0	10	20	8423533426932
	d1 - Ø (mm)3,4 nombre_web_en33
BZALRO20060	20x60 (5 x 44 x 20)	5	44	26	20	5	0	8	20	8423533426949
	d1 - Ø (mm)3,9 nombre_web_en26
BZALRO20070	20x70 (5 x 53 x 20)	5	53	32	20	5	0	8	20	8423533426956
	d1 - Ø (mm)3,9 nombre_web_en32
BZALRO21080	21x80 (5,6 x 60 x 22)	5,6	60	36	22	5,6	0	6	20	8423533426963
	d1 - Ø (mm)4,4 nombre_web_en36
BZALRO21090	21x90 (5,6 x 70 x 22)	5,6	70	42	22	5,6	0	6	20	8423533426970
	d1 - Ø (mm)4,4 nombre_web_en42
BZALRO22100	22x100 (6 x 79 x 23)	6	79	47	23	6	0	4	20	8423533426987
	d1 - Ø (mm)4,7 nombre_web_en47
BZALRO22110	22x110 (6 x 86 x 23)	6	86	52	23	6	0	2	20	8423533426994
	d1 - Ø (mm)4,7 nombre_web_en52
BZALRO22120	22x120 (6 x 97 x 25)	6	97	58	25	6	0	2	20	8423533427007
	d1 - Ø (mm)4,7 nombre_web_en58
BZALRO23130	23x130 (7,8 x 105 x 25)	7,8	105	63	25	7,8	0	2	20	8423533427014
	d1 - Ø (mm)5,8 nombre_web_en63
VALRO14025	14x25 (2,6 x 17 x10)	2,6	17	10	10	2,6	0	125	8	8423533469366
	d1 - Ø (mm)2 nombre_web_en10
VALRO16030	16x30 (3,1 x 20 x 10)	3,1	20	12	10	3,1	0	75	8	8423533469373
	d1 - Ø (mm)2,4 nombre_web_en12
VALRO17040	17x40 (3,5 x 29 x 13)	3,5	29	17	13	3,5	0	75	8	8423533469380
	d1 - Ø (mm)2,7 nombre_web_en17
VALRO18040	18x40 (3,7 x 28 x 14)	3,7	28	17	14	3,7	0	75	8	8423533469397
	d1 - Ø (mm)2,9 nombre_web_en17
VALRO18050	18x50 (3,7 x 37 x 15)	3,7	37	22	15	3,7	0	75	8	8423533469403
	d1 - Ø (mm)2,9 nombre_web_en22
VALRO19050	19x50 (4,4 x 37 x 15)	4,4	37	22	15	4,4	0	60	8	8423533469410
	d1 - Ø (mm)3,4 nombre_web_en22
VALRO19060	19x60 (4,4 x 46 x 17)	4,4	46	28	17	4,4	0	60	8	8423533469427
	d1 - Ø (mm)3,4 nombre_web_en28
VALRO19070	19x70 (4,4 x 55 x 18)	4,4	55	33	18	4,4	0	60	8	8423533469434
	d1 - Ø (mm)3,4 nombre_web_en33
VALRO20060	20x60 (5 x 44 x 20)	5	44	26	20	5	0	60	8	8423533469441
	d1 - Ø (mm)3,9 nombre_web_en26
VALRO20070	20x70 (5 x 53 x 20)	5	53	32	20	5	0	60	8	8423533469458
	d1 - Ø (mm)3,9 nombre_web_en32
VALRO20080	20x80 (5 x 63 x 21)	5	63	38	21	5	0	60	8	8423533469465
	d1 - Ø (mm)3,9 nombre_web_en38
VALRO21080	21x80 (5,6 x 60 x 22)	5,6	60	36	22	5,6	0	50	8	8423533469472
	d1 - Ø (mm)4,4 nombre_web_en36
VALRO21090	21x90 (5,6 x 70 x 22)	5,6	70	42	22	5,6	0	40	8	8423533469489
	d1 - Ø (mm)4,4 nombre_web_en42
VALRO22100	22x100 (6 x 79 x 23)	6	79	47	23	6	0	35	8	8423533469496
	d1 - Ø (mm)4,7 nombre_web_en47
VALRO22110	22x110 (6 x 86 x 23)	6	86	52	23	6	0	35	8	8423533469502
	d1 - Ø (mm)4,7 nombre_web_en52
VALRO22120	22x120 (6 x 97 x 25)	6	97	58	25	6	0	20	8	8423533469519
	d1 - Ø (mm)4,7 nombre_web_en58
VALRO23130	23x130 (7,8 x 105 x 25)	7,8	105	63	25	7,8	0	20	8	8423533469526
	d1 - Ø (mm)5,8 nombre_web_en63
