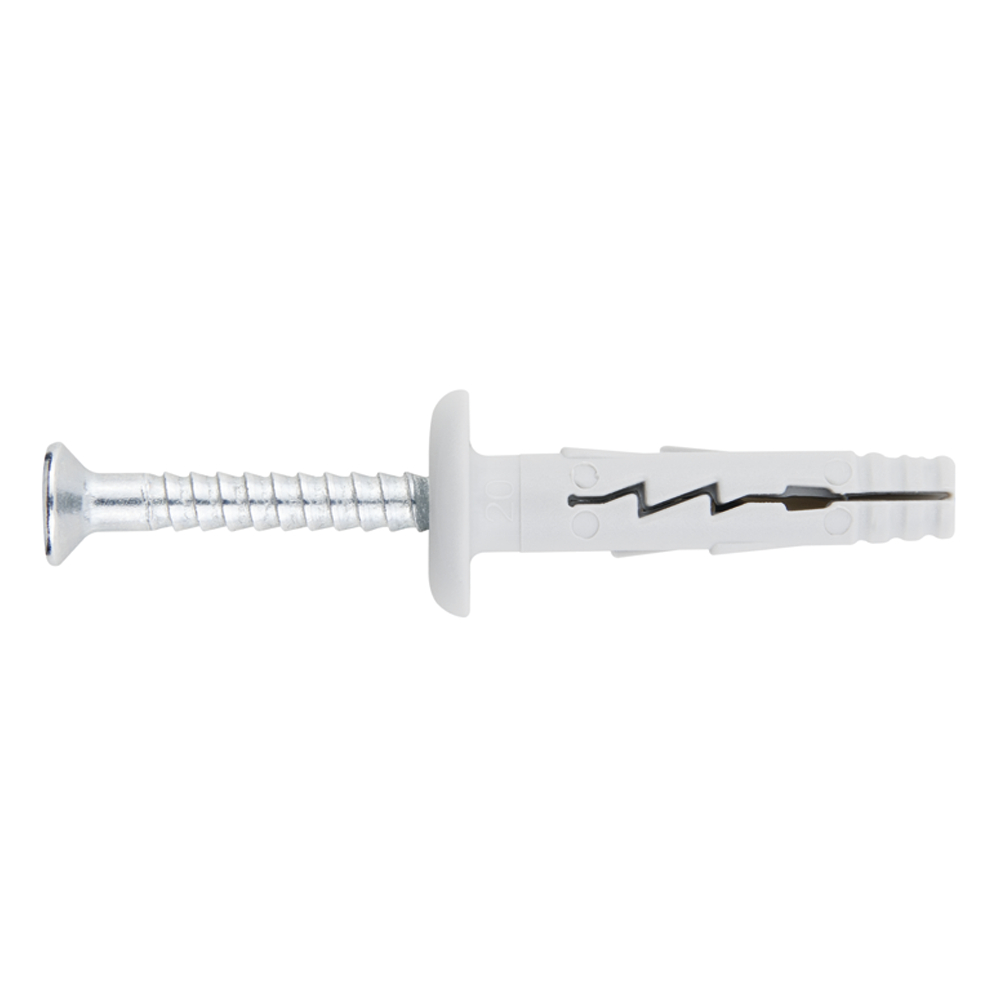

TC-SP wide-head tapping plug TC-SP

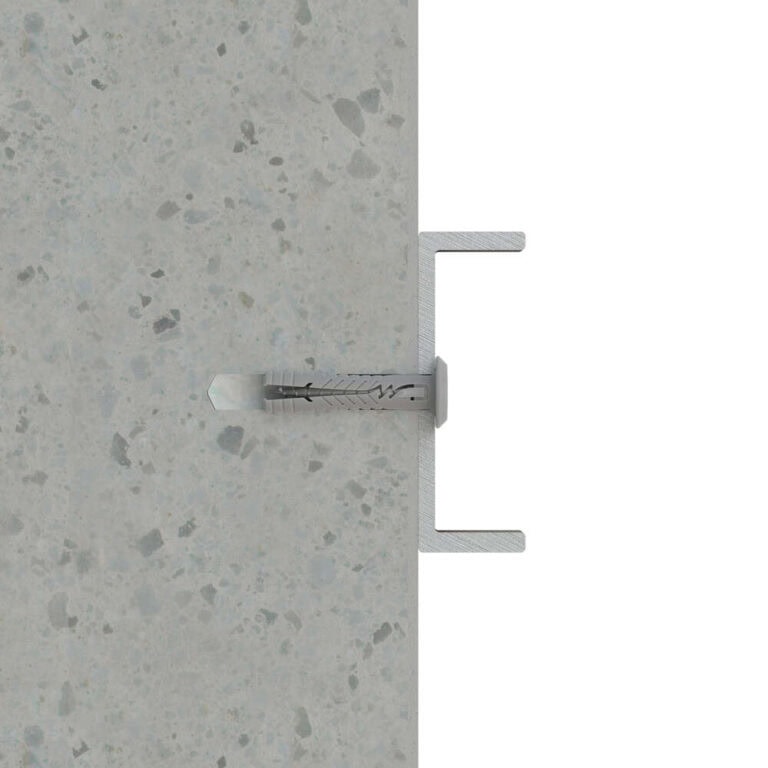

High expansion plug with a wide head. It comes pre-assembled with a countersunk head screw and PZ recess. It can be used to fasten high load bearing elements to solid and hollow materials. It is mainly used for the installation of metal profiles in the assembly of plasterboard. The dowel is made of nylon and the screw is made of zinc-plated steel.
CodeSizeTHICKNESS MAX.FIXTURE [mm]Nº RECESSMin. Order Qty.Pcs. BoxPcs. MasterboxEANTechnical info.
TCSP050275 x 275PZ201002.4008423533814005
  • tfix - Max. fixture thickness5
  • h1 - Drill hole depth min.25
  • d0 - Ø Drill5
  • L - Lenght27
TCSP060326 x 325PZ201001.2008423533814012
  • tfix - Max. fixture thickness5
  • h1 - Drill hole depth min.30
  • d0 - Ø Drill6
  • L - Lenght32
TCSP060406 x 4010PZ201001.2008423533814029
  • tfix - Max. fixture thickness10
  • h1 - Drill hole depth min.30
  • d0 - Ø Drill6
  • L - Lenght40
  • [HIGH-EXPANSION PLUG + SCREW] Pre-assembled high-expansion hammer-in plug with a wide head and a countersunk-head screw. The countersunk collar prevents the anchor from being fully drawn into the drill hole during installation.
  • [PLASTERBOARD AND EASY INSTALLATION] Primarily used for installing plasterboard. It is also fully removable and ideal for fitting grilles, railings, brackets, shelving, signs and sanitary ware. Installation is carried out by hammering or by screwing in the screw.
  • [HIGH PERFORMANCE ON A RANGE OF MATERIALS] It is ideal for use on various materials such as concrete, reinforced concrete, stone, aerated concrete, solid brick, concrete brick and hollow brick.
  • [FOR INDOOR AND OUTDOOR USE] It is made of steel with a zinc-plated coating that protects the fastener and prevents corrosion and rust. Suitable for indoor and outdoor use in low-humidity environments.
  • [VARIETY OF SIZES] Available in various lengths and diameters, from 5 x 27 to 6 x 40 mm.
Amplify information
  • Electrical installations
  • Plasterboard profiles
  • Metal and lath frames
  • Signage
  • Insulation supports
  • Skirting boards
PR705BI13296 CP TC SP TC SP SZ4
PR705BI10419 CP TC SP TC SP SZ4
TC-SP
icon book
Technical Sheets
FT_TC_en_rev14.pdf
