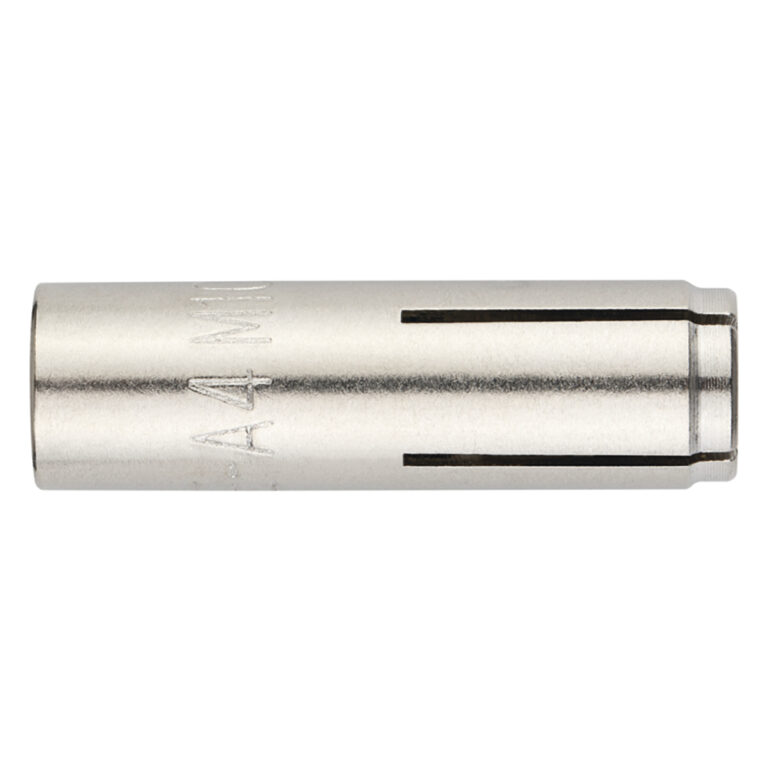

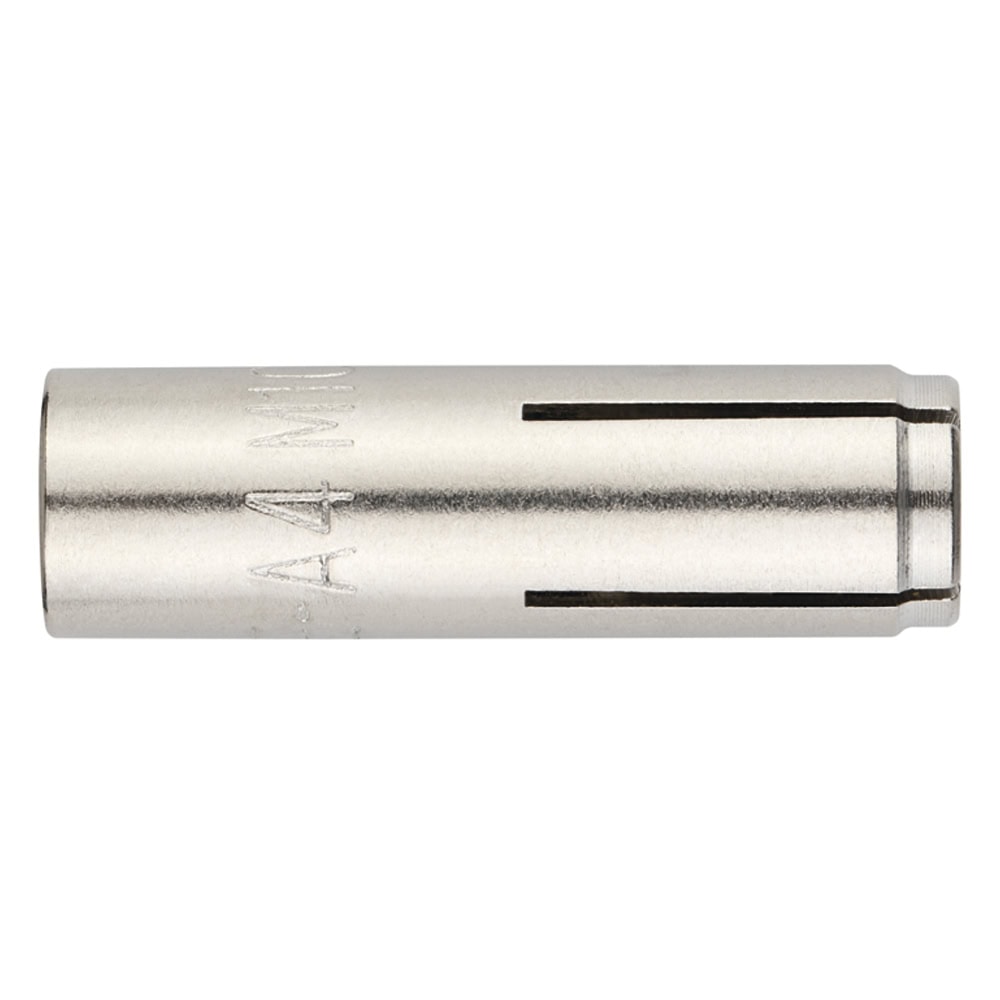

Stainless steel drop-in anchor HE-A4

Drop-in threaded anchor for high loads. Designed to ensure secure fixings in materials such as concrete, reinforced concrete or stone. ETE approved for non-structural applications. Made of A4 stainless steel, a highly corrosion resistant material.
Amplify information
> CAD Data

ASSESSMENTS AND CERTIFICATES

+ info
TDDU12BI9302 ETA NS 14 0068 ETA NS 14 0068 SZ6
EKOU2BI8304 HO FUEGO Resistente al fuego SZ7
EKOU24BI9355 HO CE 20 CE 2020 SZ7
EKOU48BI9379 HO VDS VDS SZ7
CODESIZELENGTHPcs BoxPcs MasterboxEANTechnical info.
HEA4M06M6 x 25 Ø8251004.0008423533040206
  • df - Ø Element to fix7
  • Tins - Torque (Nm)4
  • hef - Effective depth25
  • hnom - Min. anchor depth25
  • h1 - Drill hole depth min.27
  • d0 - Ø Drill8
  • hmin - Min. substrate thickness80
  • L - Lenght25
HEA4M08M8 x 30 Ø10301001.6008423533040305
  • df - Ø Element to fix9
  • Tins - Torque (Nm)11
  • hef - Effective depth30
  • hnom - Min. anchor depth30
  • h1 - Drill hole depth min.33
  • d0 - Ø Drill10
  • hmin - Min. substrate thickness80
  • L - Lenght30
HEA4M10M10 x 40 Ø1240508008423533040404
  • df - Ø Element to fix12
  • Tins - Torque (Nm)17
  • hef - Effective depth40
  • hnom - Min. anchor depth40
  • h1 - Drill hole depth min.43
  • d0 - Ø Drill12
  • hmin - Min. substrate thickness80
  • L - Lenght40
HEA4M12M12 x 50 Ø1550506008423533040503
  • df - Ø Element to fix14
  • Tins - Torque (Nm)38
  • hef - Effective depth50
  • hnom - Min. anchor depth50
  • h1 - Drill hole depth min.54
  • d0 - Ø Drill15
  • hmin - Min. substrate thickness100
  • L - Lenght50
HEA4M16M16 x 65 Ø2065252508423533040602
  • df - Ø Element to fix18
  • Tins - Torque (Nm)60
  • hef - Effective depth65
  • hnom - Min. anchor depth65
  • h1 - Drill hole depth min.70
  • d0 - Ø Drill20
  • hmin - Min. substrate thickness130
  • L - Lenght65
HEA4M20M20 x 80 Ø2580251008423533040701
  • df - Ø Element to fix22
  • Tins - Torque (Nm)100
  • hef - Effective depth80
  • hnom - Min. anchor depth80
  • h1 - Drill hole depth min.86
  • d0 - Ø Drill25
  • hmin - Min. substrate thickness160
  • L - Lenght80
  • Air conditioning units

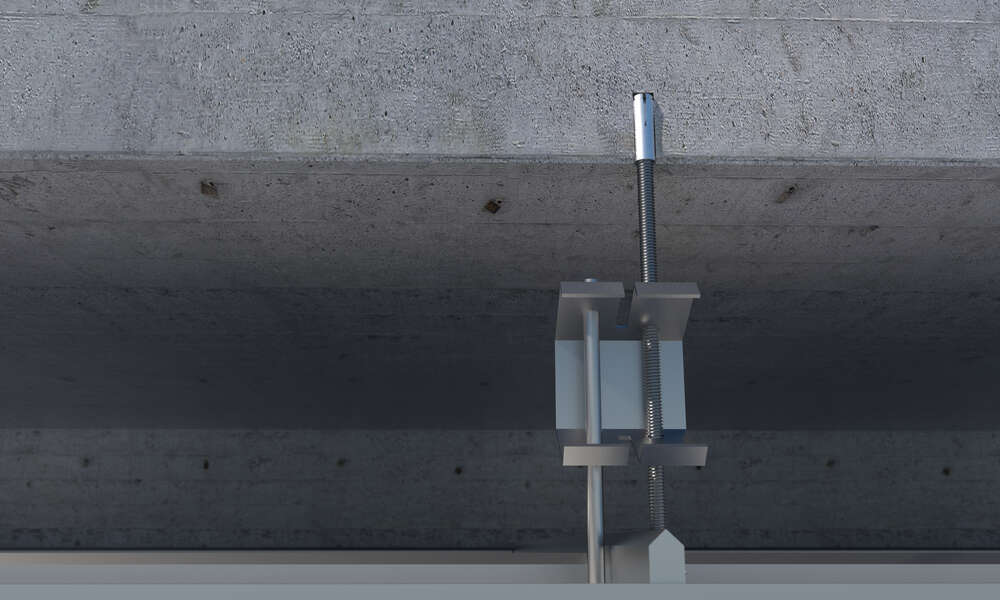

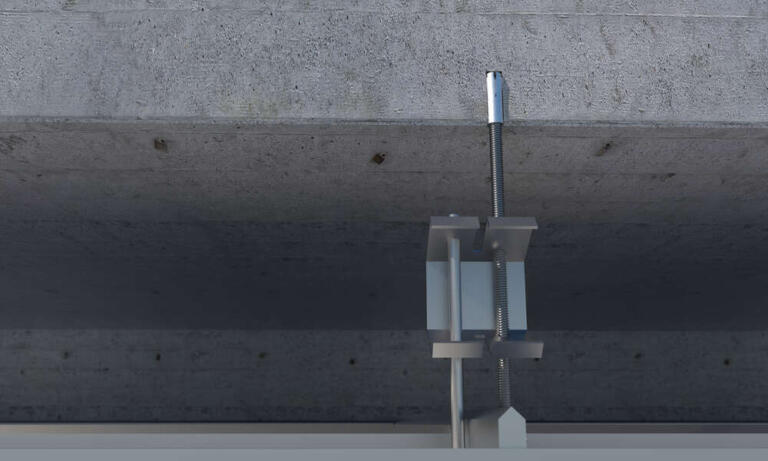

  • Ceiling anchorage
  • Beach railings
  • Marquees
  • Industrial shelving
  • Street lights
  • Balcony railings
  • Wooden railings
PR55BI10393 CP HE A4 HE A4 SZ4
