Produtos / Parafusos / Parafusos broca, rosca chapa e PVC / DIN-7982 H / DIN-7982 HP Z
DIN-7982 HP Z

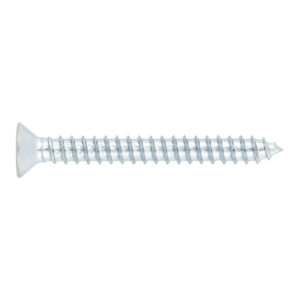

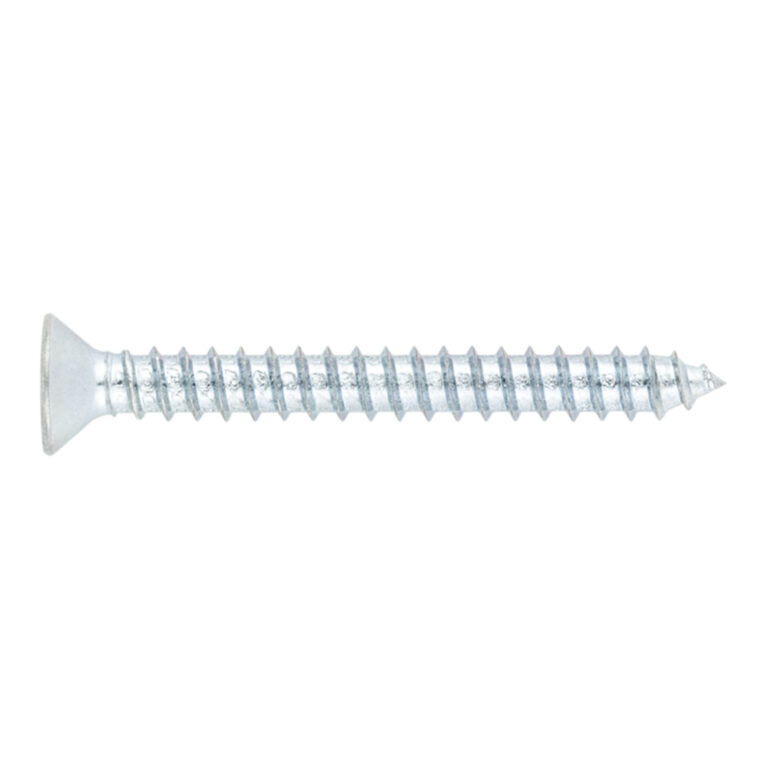

Parafuso DIN-7982 HP Z

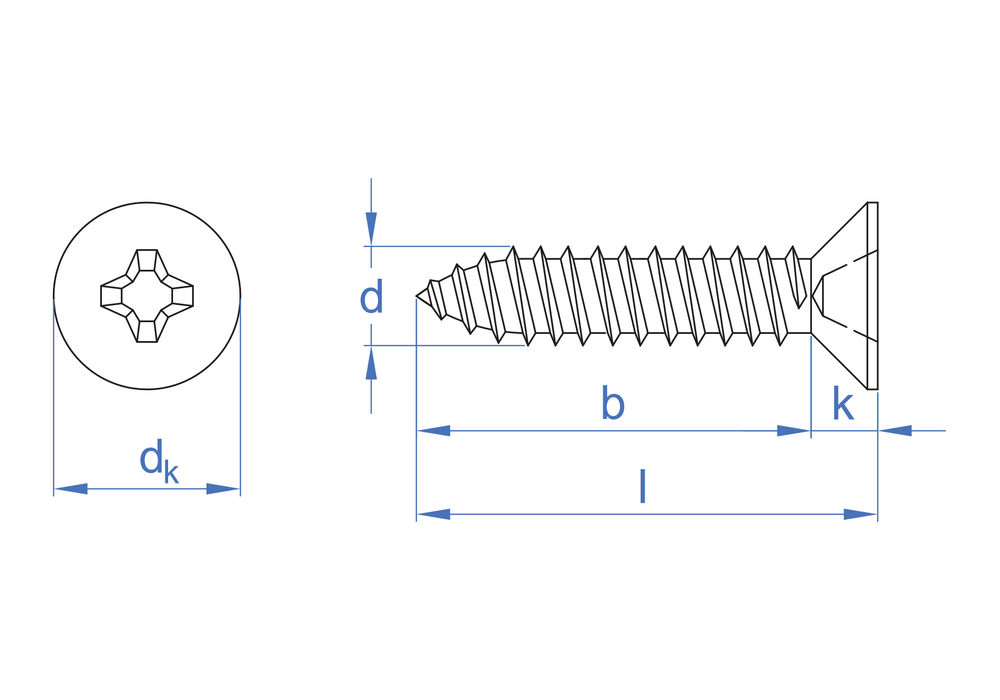

Parafuso DIN7982 com rosca para chapa, cabeça avellanada e chave PH. É auto-roscante e tem uma ponta tipo C. É normalmente usado em uniões chapa-chapa em que é necessário que a cabeça do parafuso fique embutida no material base. É feito de aço com revestimento zincado.
Variantes do produto
CódigoMedidaNº FENDAUds. CaixaUds. MasterboxEANInfo. Técnica
T82290062,9 x 6,5PH11.00045.0008423533173034
T82290092,9 x 9,5PH11.00045.0008423533173133
T82290132,9 x 13PH11.00045.0008423533173232
T82290162,9 x 16PH11.00024.0008423533173331
T82290192,9 x 19PH11.00024.0008423533173430
T82290222,9 x 22PH11.00024.0008423533173539
T82290252,9 x 25PH150012.0008423533173638
T82350093,5 x 9,5PH21.00024.0008423533173737
T82350133,5 x 13PH250022.5008423533173836
T82350163,5 x 16PH250022.5008423533173935
T82350193,5 x 19PH250012.0008423533174031
T82350223,5 x 22PH250012.0008423533174130
T82350253,5 x 25PH225011.2508423533174239
T82350323,5 x 32PH22506.0008423533174338
T82350383,5 x 38PH22506.0008423533174437
T82390093,9 x 9,5PH250022.5008423533174536
T82390133,9 x 13PH250012.0008423533174635
T82390163,9 x 16PH250012.0008423533174734
T82390193,9 x 19PH250012.0008423533174833
T82390223,9 x 22PH22506.0008423533174932
T82390253,9 x 25PH22506.0008423533175038
T82390323,9 x 32PH22506.0008423533175137
T82390383,9 x 38PH22506.0008423533175236
T82390453,9 x 45PH22503.0008423533175335
T82390503,9 x 50PH22503.0008423533175434
T82420134,2 x 13PH250015.0008423533175632
T82420164,2 x 16PH250012.0008423533175731
T82420194,2 x 19PH250012.0008423533175830
T82420224,2 x 22PH225011.2508423533175939
T82420254,2 x 25PH22506.0008423533176035
T82420324,2 x 32PH22506.0008423533176134
T82420384,2 x 38PH22506.0008423533176233
T82420454,2 x 45PH22503.0008423533176332
T82420504,2 x 50PH22503.0008423533176431
T82420604,2 x 60PH22503.0008423533176530
T82420704,2 x 70PH22503.0008423533176639
T82480134,8 x 13PH250012.0008423533176738
T82480164,8 x 16PH225011.2508423533176837
T82480194,8 x 19PH22506.0008423533176936
T82480224,8 x 22PH22506.0008423533177032
T82480254,8 x 25PH22506.0008423533177131
T82480324,8 x 32PH22506.0008423533177230
T82480384,8 x 38PH22503.0008423533177339
T82480454,8 x 45PH22503.0008423533177438
T82480504,8 x 50PH22503.0008423533177537
T82480604,8 x 60PH22501.5008423533177636
T82480704,8 x 70PH21002.4008423533177735
T82550135,5 x 13PH32507.5008423533177834
T82550165,5 x 16PH32506.0008423533177933
T82550195,5 x 19PH32506.0008423533178039
T82550225,5 x 22PH32506.0008423533178138
T82550255,5 x 25PH32506.0008423533178237
T82550325,5 x 32PH32503.0008423533178336
T82550385,5 x 38PH32503.0008423533178435
T82550455,5 x 45PH32503.0008423533178534
T82550505,5 x 50PH32501.5008423533178633
T82550605,5 x 60PH31001.2008423533178732
T82550705,5 x 70PH31001.2008423533178831
T82630256,3 x 25PH32503.0008423533179333
T82630326,3 x 32PH32503.0008423533179432
T82630386,3 x 38PH32503.0008423533179531
T82630456,3 x 45PH32501.5008423533179630
T82630506,3 x 50PH32501.5008423533179739
T82630606,3 x 60PH31001.2008423533179838
T82630706,3 x 70PH31001.2008423533179937
