Produkte / Montagesysteme / Massivrohrschellen / AB-RA / Produkte / AB-RA
AB-RA
AB-RA
AB-RA

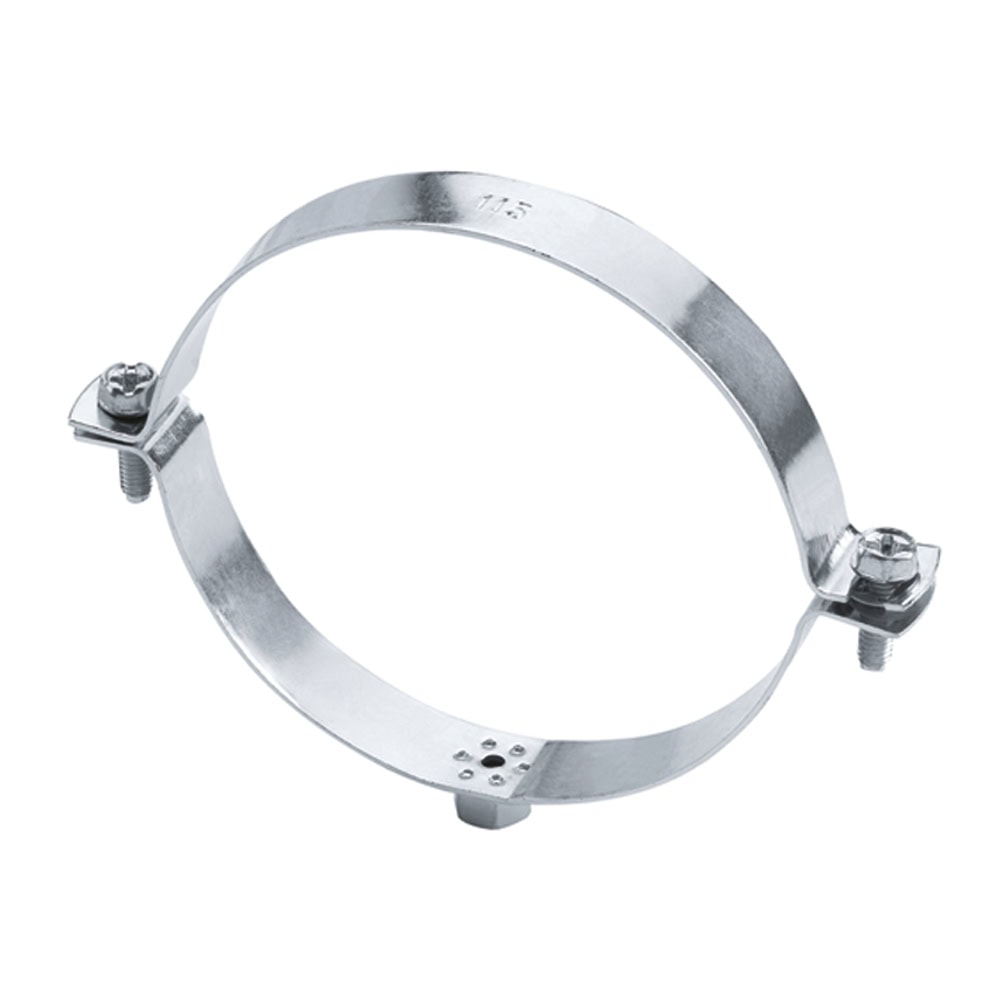

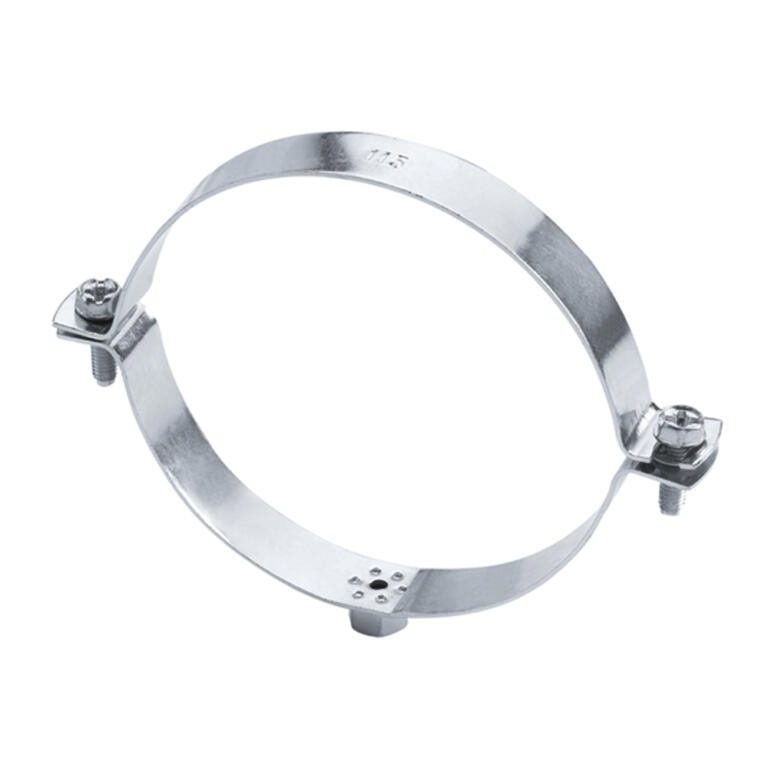

Massivrohrschelle M8 seitlich einschwenkbar AB-RA

Verstärkte offene Schelle, entwickelt zur Befestigung von Metall- und Kunststoffrohren mit einem Durchmesser von 15 bis 125 mm (je nach Modell). Die seitliche Schnellöffnung ermöglicht eine einfache Montage und Demontage der Rohre. Sie eignet sich besonders für Sanitär- oder Elektroinstallationen. Mit einer angeschweißten M8-Mutter. Die seitlichen Schrauben sind mit Kunststoffscheiben versehen, die ein Verlieren verhindern. Aus verzinktem Stahl gefertigt.
Produktvarianten
CodeAbmessungØ D [mm]MAXIMALE LASTStk. VerpackungStk. UmverpackungEANTechnische Info.
ABRA01515 (M8)12-1680503008423533737199
ABRA01818 (M8)15 - 1980503008423533737205
ABRA02222 (M8)20 - 2580502008423533737212
ABRA02828 (M8)26 - 3080502008423533737229
ABRA03535 (M8)32 - 3680501508423533737236
ABRA04242 (M8)38 - 4380501508423533737243
ABRA04848 (M8)47 - 5180501008423533737250
ABRA05454 (M8)53 - 5880251008423533737267
ABRA06060 (M8)60 - 648025758423533737274
ABRA07575 (M8)75 - 808025508423533737281
ABRA09090 (M8)87 - 928025508423533737298
ABRA100100 (M8)99 - 1058025508423533737304
ABRA110110 (M8)107 - 1128025508423533737311
ABRA115115 (M8)113 - 1188025508423533737328
ABRA125125 (M8)125 - 1308025508423533737335
