AB-GP
AB-GP
AB-GP

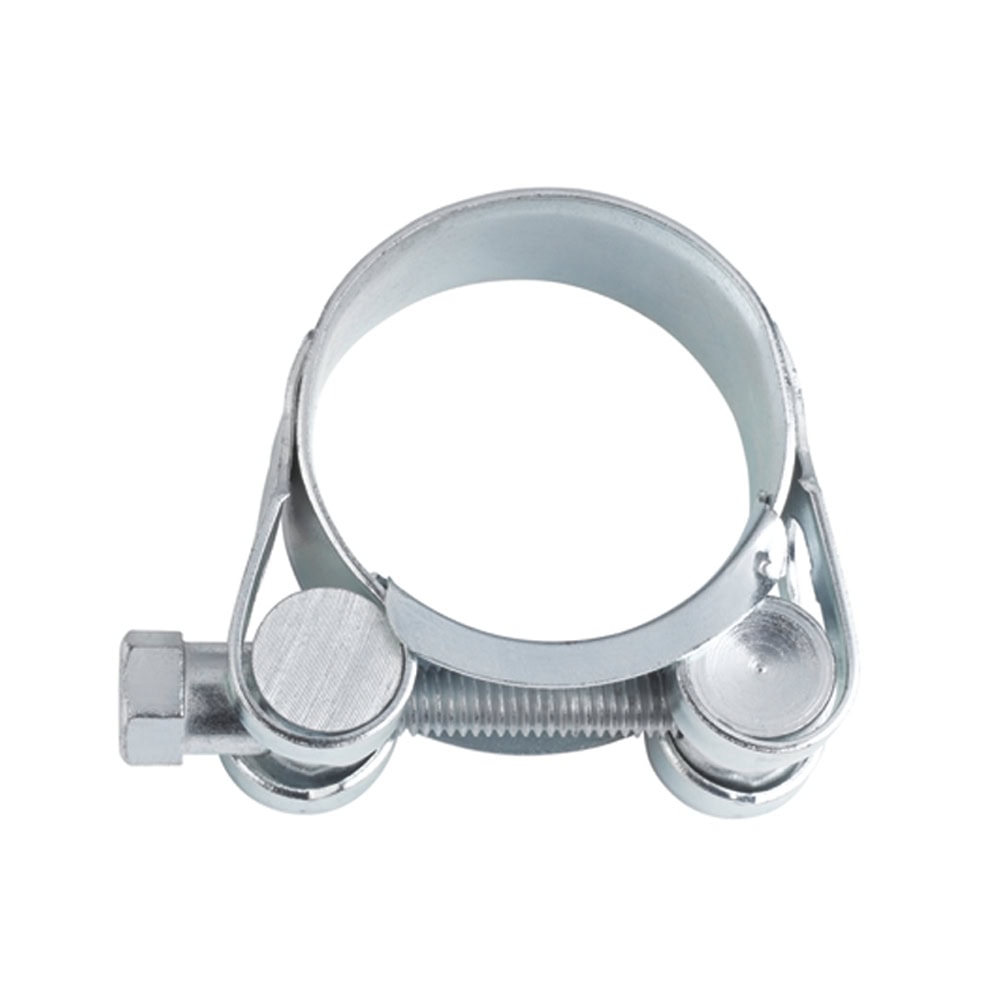

Gelenkbolzenschelle AB-GP

Gelenkbolzenschelle, speziell entwickelt für die sichere Befestigung von Rohren und Schläuchen, die hohem Druck ausgesetzt sind. Sie kann für flexible Stahl-, Kupfer- oder PVC-Rohre mit einem Durchmesser von 23 bis 174 mm (je nach Modell) verwendet werden. Sie verfügt über eine Schraube der Güteklasse 8.8, die einen effektiven Halt gewährleistet, und eine abgerundete Schelle, um Beschädigungen an den Rohren zu vermeiden. Sie ist aus verzinktem Stahl gefertigt.
Produktvarianten

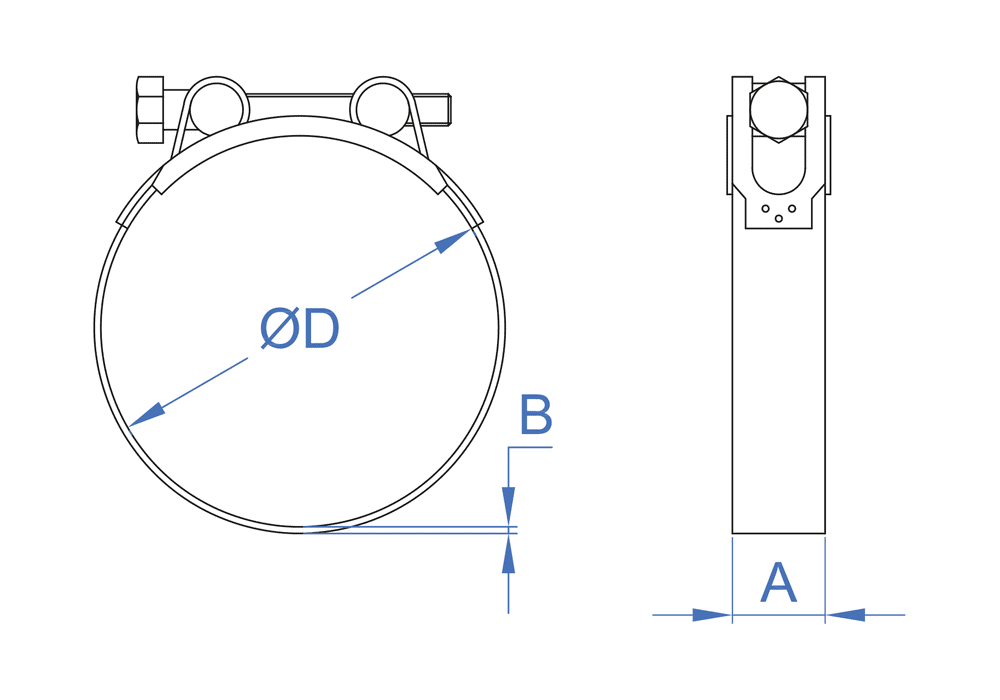

CodeAbmessungØ D [mm]Stk. VerpackungStk. UmverpackungEANTechnische Info.
AGP02302523-2523 - 25503008423533226303
AGP02602826-2826 - 28503008423533226402
AGP02903129-3129 - 31502008423533226501
AGP03203532-3532 - 35501508423533226600
AGP03603936-3936 - 39501508423533226709
AGP04004340-4340 - 43501008423533226808
AGP04404744-4744 - 475008423533226907
AGP04805148-5148 - 5125758423533227003
AGP05205552-5552 - 5525758423533227102
AGP05605956-5956 - 5925758423533227201
AGP06006360-6360 - 6325508423533227300
AGP06406764-6764 - 6725508423533227409
AGP06807368-7368 - 732508423533227508
AGP07407974-7974 - 792508423533227607
AGP08008580-8580 - 852508423533227706
AGP08609186-9186 - 912508423533227805
AGP09209792-9792 - 972508423533227904
AGP09810398-10398 - 1032508423533228000
AGP104112104-112104 - 1122508423533228109
AGP113121113-121113 - 1212508423533228208
AGP122130122-130122 - 1302508423533228307
AGP131139131-139131 - 1392508423533228406
AGP140148140-148140 - 1482508423533228505
AGP149161149-161149 - 1612508423533228604
AGP162174162-174162 - 1742508423533228703
