Produkte / Montagesysteme / Leichte Rohrschellen / AB-6I / Produkte / AB-6I
AB-6I
AB-6I
AB-6I
AB-6I

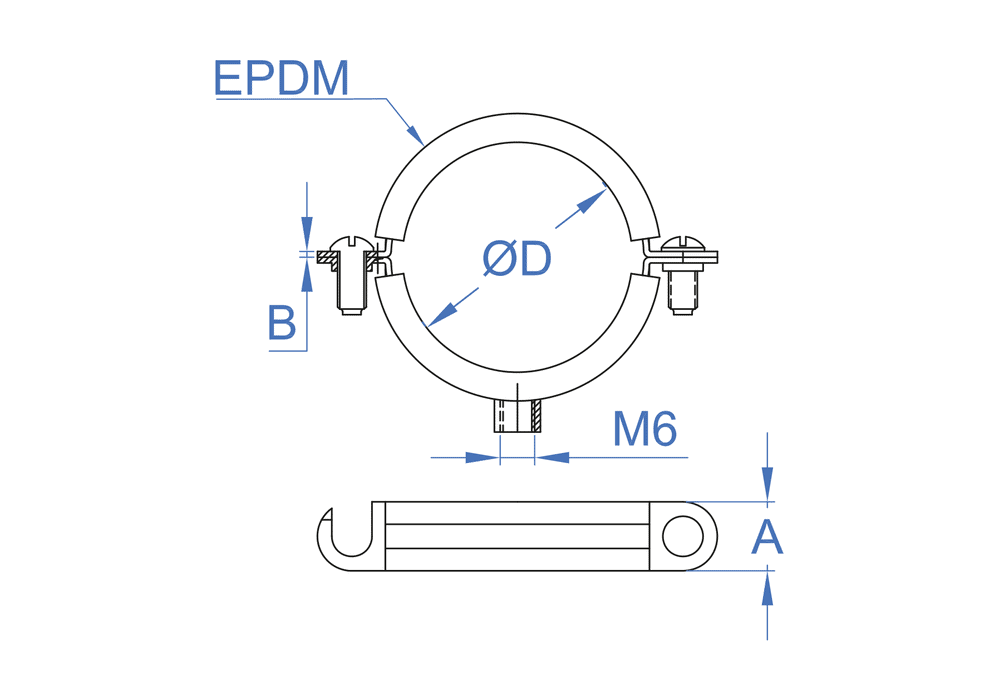

Rohrschelle mit Schallschutzeinlage M6 AB-6I

Isofonische Schelle zur Befestigung von leichten Rohren mit einem Durchmesser zwischen 12 mm und 63 mm (je nach Modell). Mit einem isolierenden EPDM-Gummi, der Vibrationen und Geräusche reduziert. Kann für Stahl-, Kupfer- oder PVC-Rohre in Elektro-, Gas- oder Sanitäranlagen verwendet werden. Entspricht der spanischen Bauverordnung. Mit integrierter M6-Einpressmutter und seitlichen Öffnungen. Aus Stahl mit Bricomat-Beschichtung.
Produktvarianten
CodeAbmessungØ D [mm]MAXIMALE LASTStk. VerpackungStk. UmverpackungEANTechnische Info.
AB6I01212 (M6)12701006008423533217202
AB6I01515 (M6)15701006008423533217400
AB6I01616 (M6)16701006008423533217509
AB6I01818 (M6)18701006008423533217608
AB6I02222 (M6)22701004008423533217806
AB6I02626 (M6)26701004008423533217905
AB6I02828 (M6)28701003008423533218001
AB6I03232 (M6)3270502008423533218100
AB6I03535 (M6)3570502008423533218209
AB6I04242 (M6)42100501508423533218308
AB6I04848 (M6)48100501008423533218407
AB6I05454 (M6)54100501008423533218506
AB6I06060 (M6)60100501008423533218605
