Braçadeira de cabo DIN 741 zincada SJ-Z

Abraçadeira DIN 741, concebida para uma fixação duradoura dos cabos, cordas ou correntes. Permite-lhe fixar facilmente os cabos ou ligar diferentes cabos entre si. Pode ser utilizado em conjunto com outros acessórios, como os dedais. Fabricado em aço zincado.

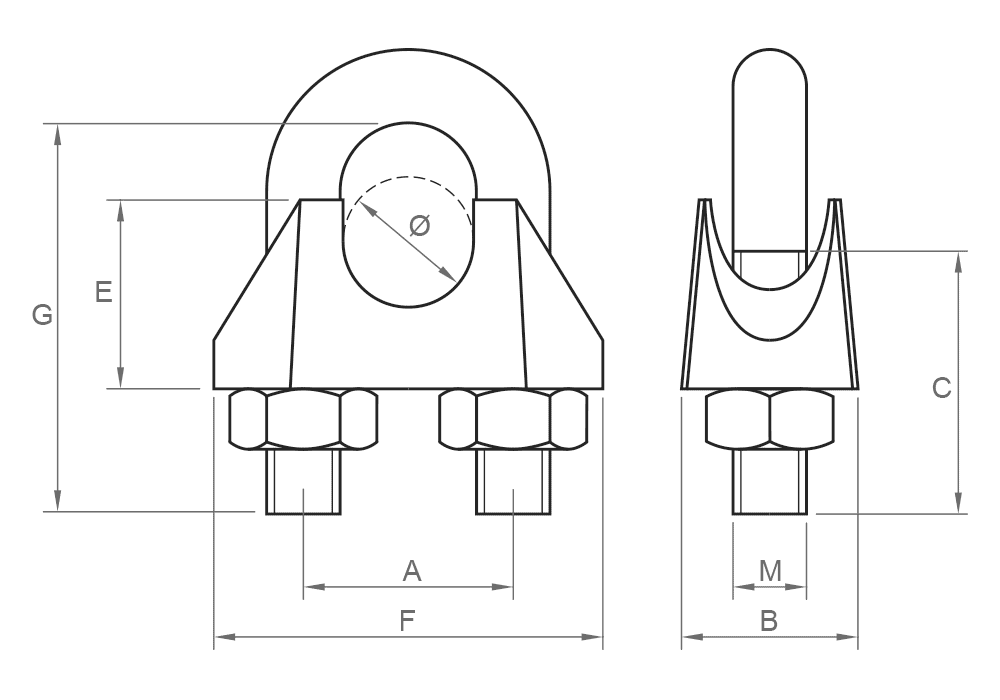

CódigoMétricaMedidaØ CABOØ GanchoØ AnelØ OLHALUni. vendas mín.Uds. CaixaUds. BlisterUds. MasterboxBlisters CaixaEANInfo. Técnica
SJZ0403M4 (Ø3)302002.4008423533858573
  • d1 - Ø (mm)4
  • A x B9 x 12
SJZ0505M5 (Ø5)502001.2008423533858580
  • d1 - Ø (mm)6
  • A x B11 x 13
SJZ0506M5 (Ø6 - 6,5)601001.2008423533858597
  • d1 - Ø (mm)8
  • A x B13 x 15
SJZ0608M6 (Ø8)801006008423533860675
  • d1 - Ø (mm)9
  • A x B16 x 19
SJZ0810M8 (Ø10)1001004008423533858610
  • d1 - Ø (mm)11
  • A x B19 x 22
SJZ0811M8 (Ø11)1101004008423533858627
  • d1 - Ø (mm)12
  • A x B20 x 22
SJZ1013M10 (Ø13)130501508423533858634
  • d1 - Ø (mm)14
  • A x B24 x 30
SJZ1014M10 (Ø14)140502008423533858641
  • d1 - Ø (mm)15
  • A x B25 x 30
SJZ1216M12 (Ø16)160501008423533858658
  • d1 - Ø (mm)17
  • A x B29 x 33
SJZ1220M12 (Ø20)20025758423533860682
  • d1 - Ø (mm)20
  • A x B32 x 38
SJZ1422M14 (Ø22)22015458423533858672
  • d1 - Ø (mm)23
  • A x B37 x 44
SJZ1426M14 (Ø26)26015458423533858689
  • d1 - Ø (mm)27
  • A x B41 x 45
SJZ1630M16 (Ø30)30010308423533858696
  • d1 - Ø (mm)32
  • A x B48 x 50
SJZ1634M16 (Ø34)34010208423533858702
  • d1 - Ø (mm)36
  • A x B52 x 55
SJZ1640M16 (Ø40)4005158423533858719
  • d1 - Ø (mm)42
  • A x B58 x 60
SJZ1845M18 (Ø45)450508423533890207
  • d1 - Ø (mm)45
  • A x B69 x 97
SJZ2050M20 (Ø50)500508423533890214
  • d1 - Ø (mm)50
  • A x B69 x 97
BZSJZ0403M4 (Ø3)304208423533492043
  • d1 - Ø (mm)4
  • A x B9 x 12
BZSJZ0505M5 (Ø5)502208423533492050
  • d1 - Ø (mm)6
  • A x B11 x 13
BZSJZ0506M5 (Ø6 - 6,5)602208423533492067
  • d1 - Ø (mm)8
  • A x B13 x 15
BZSJZ0608M6 (Ø8)802208423533492074
  • d1 - Ø (mm)9
  • A x B16 x 19
  • Braçadeiras de cabos
  • ligações de cabos
PR887BI12137 CP SJ Z SJ Z SZ4
PR887BI12136 CP SJ Z SJ Z SZ4
PR887BI12135 CP SJ Z SJ Z SZ4
PR887BI12134 CP SJ Z SJ Z SZ4
