Produtos / Parafusos / Parafusos para telhados e fachadas / DIN-7504-K / DIN-7504-K
DIN-7504-K
DIN-7504-K
DIN-7504-K
DIN-7504-K

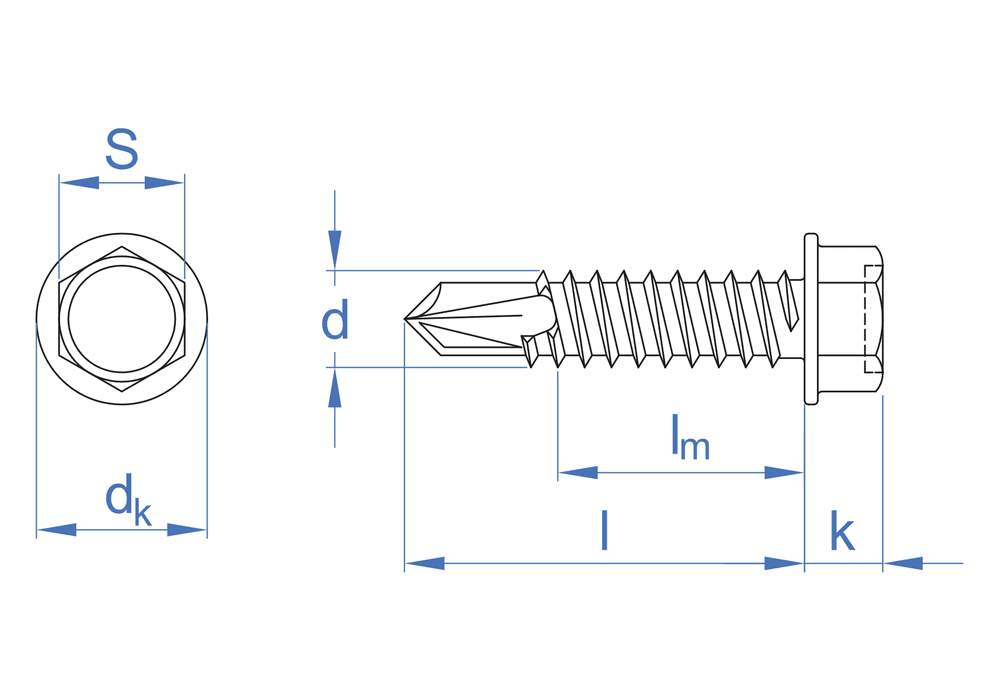

Parafuso DIN-7504-K

Parafuso auto-roscante DIN-7504-K com cabeça hexagonal e anilha estampada. A sua ponta tipo broca é capaz de perfurar materiais sem necessidade de pré-perfuração. Pode ser utilizado para a união de chapas metálicas ou para a montagem de chapas metálicas em perfis pesados. É fabricado em aço zincado.
Variantes do produto
CódigoMedidaNº FENDAUds. CaixaUds. MasterboxEANInfo. Técnica
ABE35093,5 x 9,561.00024.0008423533100009
ABE35133,5 x 1361.00012.0008423533100108
ABE35163,5 x 1661.00012.0008423533100207
ABE35193,5 x 1961.00012.0008423533100306
ABE42134,2 x 1371.00012.0008423533100603
ABE42164,2 x 1671.0008.0008423533100702
ABE42194,2 x 1971.0008.0008423533100801
ABE42254,2 x 2575006.0008423533100467
ABE42324,2 x 3275006.0008423533100474
ABE42384,2 x 3875006.0008423533100542
ABE48134,8 x 1381.0008.0008423533101204
ABE48164,8 x 1681.0006.0008423533101303
ABE48194,8 x 1985006.0008423533100566
ABE48254,8 x 2585006.0008423533190253
ABE48324,8 x 3285003.0008423533190352
ABE48384,8 x 3885003.0008423533190451
ABE55195,5 x 1985006.0008423533100573
ABE55225,5 x 2285004.0008423533100627
ABE55255,5 x 2585004.0008423533100641
ABE55325,5 x 3285003.0008423533100665
ABE55385,5 x 3885003.0008423533100726
ABE55505,5 x 5085002.0008423533190550
ABE55635,5 x 6382501.0008423533100740
ABE55755,5 x 7582501.5008423533100764
ABE63196,3 x 19105003.0008423533100849
ABE63256,3 x 25105003.0008423533100863
ABE63326,3 x 32105002.0008423533100948
ABE63386,3 x 38105002.0008423533100962
ABE63506,3 x 50102501.5008423533103024
ABE63636,3 x 63102501.5008423533101068
ABE63756,3 x 75102501.0008423533101143
ABE63806,3 x 80102501.0008423533103307
ABE63906,3 x 90102507508423533103406
ABE63106,3 x 100101006008423533103512
ABE63116,3 x 110101006008423533103611
ABE63126,3 x 120101006008423533103710
ABE63136,3 x 130101006008423533103819
ABE63146,3 x 140101006008423533103918
ABE63156,3 x 150101006008423533822161
ABE63166,3 x 160101004008423533775214
ABE63186,3 x 180101003008423533822178
ABE63206,3 x 200101003008423533822185
ABE63226,3 x 220101002008423533822192
ABE63246,3 x 240101002008423533822208
