Produtos / Sistemas de Instalação / Abraçadeiras metálicas pesadas / AB-IR / AB-IR
AB-IR
AB-IR
AB-IR

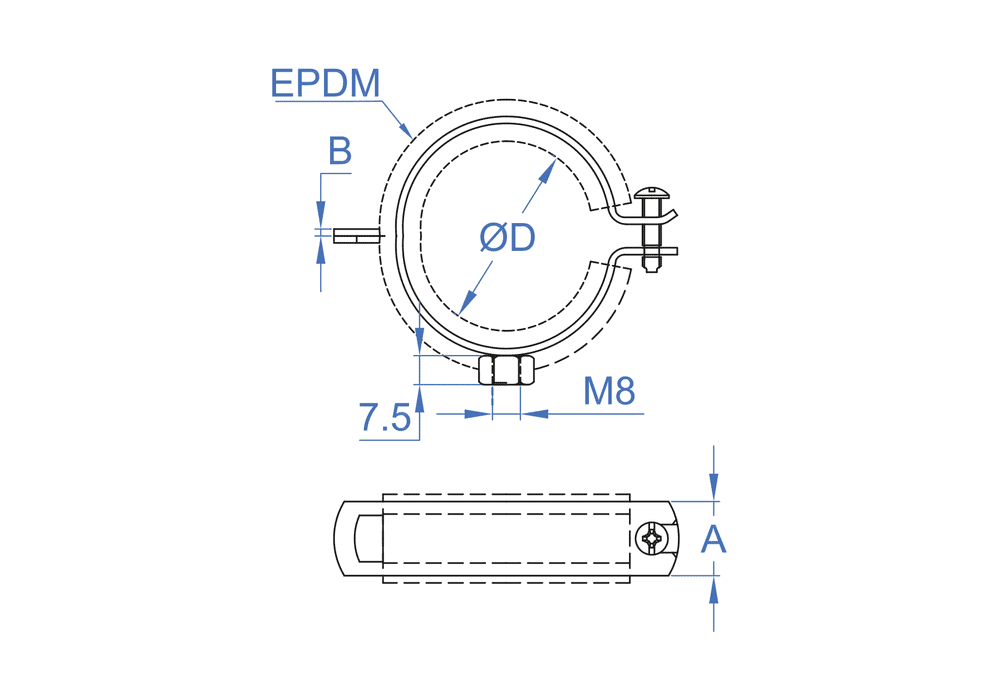

Abraçadeira isofónica instalação rápida M8 AB-IR

Pode ser utilizado em instalações de abastecimento e evacuação de água; térmicas ou de transporte de gasóleo, entre outras. Incorpora uma porca soldada M8 e uma borracha isolante de EPDM, que reduz o ruído e as vibrações. Cumpre o Código Técnico de Construção e a norma DIN-4109 de isolamento acústico. Fabricado em aço zincado.
Variantes do produto
CódigoMedidaØ D [mm]CARGA MÁXIMAUds. CaixaUds. MasterboxEANInfo. Técnica
ABIR01515 (M8)14 - 1560503008423533736949
ABIR01818 (M8)16 - 1960503008423533736956
ABIR02222 (M8)21 - 2360502008423533736970
ABIR02828 (M8)26 - 2860501508423533736987
ABIR03535 (M8)32 - 3560501008423533736994
ABIR04040 (M8)40 - 4360251008423533737007
ABIR04848 (M8)48 - 5160251008423533737014
ABIR05454 (M8)52 - 566025758423533737021
ABIR06060 (M8)57 - 606025758423533737038
