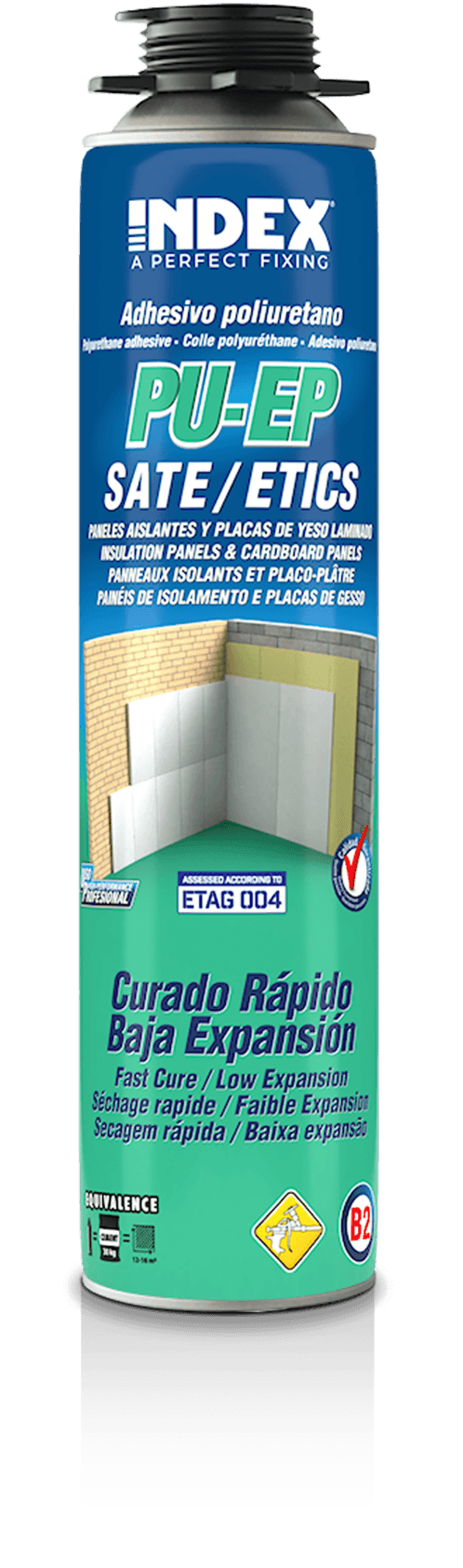

ETICS polyurethane adhesive
ETICS polyurethane adhesive

Adhesive suitable for the installation of ETICS (External Thermal Insulation Composite System) panels, insulating panels, and laminated plasterboard. Its high-density formulation ensures instant initial bonding and high adhesion strength.

ETAG 004
Index operator installing panel

Fast curing and low expansion

PU/EP polyurethane adhesive is a high-performance mounting adhesive used in the installation of ETICS (External Thermal Insulation Composite System) panels.

It is suitable for application on surfaces such as wood, PVC, metal, concrete, OSB, cement, brick, and stone.

Due to its composition, this glue offers fast curing and low expansion unlike other polyurethane foams available on the market, which translates into savings on materials, waiting times, and other fixing systems such as screws and nails.

Fast curing and low expansion

PU/EP polyurethane adhesive is a high-performance mounting adhesive used in the installation of ETICS (External Thermal Insulation Composite System) panels.

It is suitable for application on surfaces such as wood, PVC, metal, concrete, OSB, cement, brick, and stone.

Due to its composition, this glue offers fast curing and low expansion unlike other polyurethane foams available on the market, which translates into savings on materials, waiting times, and other fixing systems such as screws and nails.

Benefits

Maximum quality

Maximum quality

Product certified in accordance with ETAG 004 (EOTA TR046)

Ideal for ETICS

Ideal for ETICS

This PU/EP adhesive has been developed for the installation of exterior insulation panels, such as ETICS panels

Fast drying

Fast drying

Instant bonding with high adhesion and no screws

Low expansion

Low expansion

Despite being a polyurethane foam, the expansion of the material is controlled to facilitate precision in the installation of ETICS panels

High performance, low cost

High performance, low cost

One container of PU/EP polyurethane adhesive can cover up to 16m2

Reduced waiting time

Reduced waiting time

It has an estimated mechanical curing time of between 1 and 2 hours

Suitable for all conditions

Suitable for all conditions

The performance of the polyurethane adhesive is not affected by temperature and humidity. Therefore, it is suitable for use in any climate

Outdoor use

Outdoor use

Once cured, the bond formed by the PU/EP is resistant to rain and UV

Gun application

Gun application

For precise dosage with no waste of product

On any material

On any material

It works on wood, cement, concrete, and less porous materials, such as PVC and plasterboard

Quick adjustment

Quick adjustment

It allows for the adjustment/levelling of panels or boards

Applications

Suitable for the installation of :

  • Extruded polystyrene (XPS)
  • Expanded polystyrene (EPS)
  • Polyurethane sheets (PUR
  • Mineral wool
  • Foam glass

Suitable for application on a wide range of construction materials:

  • Concrete
  • Wood
  • OSB
  • Cement
  • Brick
  • Stone
  • Metal
  • PVC
ETICS polyurethane adhesive Applications
Index operator applying ETICS polyurethane adhesive

Instructions

The exact dose of the polyurethane adhesive makes it possible to use less material. One container can be used to adhere between 12 m2 and 16 m2 of insulating panels. The actual amount required depends on the quantity applied to each panel and the flatness of the surfaces of application. After applying PU-EP to the panel, wait for between 1 and 5 minutes before joining the panel to the desired surface. Once the 2 surfaces are joined, the PU-EP expansion stops. The insulation panels can be levelled on the surface for a maximum of 10 to 15 minutes after having joined the surfaces. The polyurethane adhesive reaches its full mechanical strength after 2 hours. Any additional fixing of the insulation panels will depend on the quality of the surface to which they are being adhered. The work surface must be protected when adhering the insulation panels in rainy or windy conditions. In the case of strong wind, the edges of the surfaces being adhered must be protected.

ETICS polyurethane adhesive Instructions first step

Shake the container thoroughly (approximately 20 times) with the valve facing down before use

ETICS polyurethane adhesive Instructions second step

Place the container in the applicator gun. Press the trigger and let the foam flow through (approx. 2 seconds). This fills the extension tube with foam. The gun is now ready to be used

ETICS polyurethane adhesive Instructions third step

It is recommended to lightly dampen the surface with water prior to application. The surface on which the insulation panels will be placed must be hard, flat and clean, with no loose parts, dust or grease. The optimal temperature for using the container is between 20ºC and 25ºC. If the temperature is below this, place the container in hot water (max. temp: 40ºC) for around 20 minutes

ETICS polyurethane adhesive Instructions fouth step

Hold the gun with the container in a vertical position during application. PU-EP should be applied first to the edges and then to the rest of the surface of the plate in a W shape.

ETICS polyurethane adhesive
ETICS polyurethane adhesive

ETICS polyurethane adhesive

Technical parameters

Volume 60-80 linear metres (750 ml)
Specific density of the adhesive 16-18 kg/m3
Application temperature min. +5°C (surface) 20-25°C (container)
Skin formation 6 – 12 min
Curing time 1 – 2 hours
Operating temperature -40°C / +90°C
Flammability rating EN 13501-1 (E)
Shelf life 18 months (+5°C - +25°C)

INDEX Polyurethane PU Foam Range®

Quality guaranteed. Professional use
