DIN-571

Tornillo con rosca para madera y aglomerado y cabeza hexagonal. Cincado.

Material

Zincado
Medidas
5
14
+ -
30
60
+ -
5 x 30

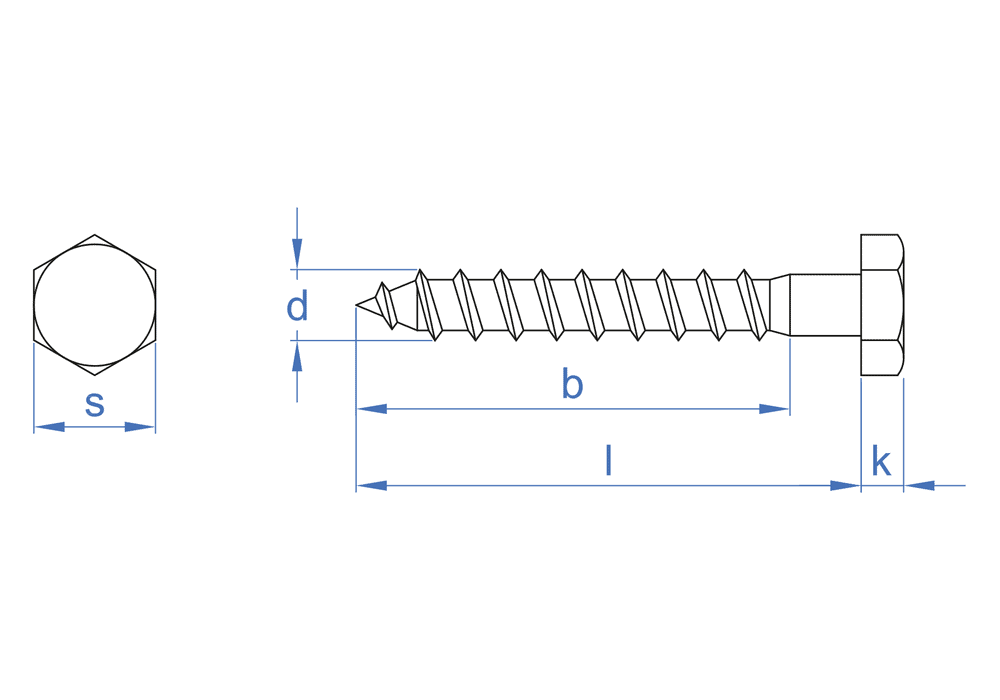

Cotas y Características técnicas
Documentación técnica
Canal profesional
Canal autoservicio
Caja profesional

200 pcs

TB05030

4,077 €/100

8423533165008

!

4 pcs

BZTB05030

1,803 €/BOLSA

8423533432247

"

pcs

€/CAJA

·

pcs

€/BOLSA

Gama completa Mostrar datos técnicos

Código Medida range sell range master EAN Precio L dk k Espesor máx. a fijar Llave de instalación
TB05030 5 x 30 200 pcs. 4800 pcs. 8423533165008 4,077 €/100 30 7,8 3,5 5 15.5 8
TB05040 5 x 40 200 pcs. 2400 pcs. 8423533165206 5,177 €/100 40 7,8 3,5 5 25.5 8
TB05050 5 x 50 200 pcs. 2400 pcs. 8423533165305 6,087 €/100 50 7,8 3,5 5 35.5 8
TB05060 5 x 60 200 pcs. 2400 pcs. 8423533504623 6,947 €/100 60 7,8 3,5 5 45.5 8
TB06025 6 x 25 200 pcs. 2400 pcs. 8423533165404 4,519 €/100 25 9,8 4 6 7.9 10
TB06030 6 x 30 200 pcs. 2400 pcs. 8423533165503 5,018 €/100 30 9,8 4 6 12.9 10
TB06035 6 x 35 200 pcs. 2400 pcs. 8423533165602 5,753 €/100 35 9,8 4 6 17.9 10
TB06040 6 x 40 200 pcs. 2400 pcs. 8423533165701 6,310 €/100 40 9,8 4 6 22.9 10
TB06045 6 x 45 200 pcs. 2400 pcs. 8423533165800 6,769 €/100 45 9,8 4 6 27.9 10
TB06050 6 x 50 200 pcs. 2400 pcs. 8423533165909 7,400 €/100 50 9,8 4 6 32.9 10
TB06060 6 x 60 200 pcs. 1200 pcs. 8423533166005 8,723 €/100 60 9,8 4 6 42.9 10
TB06070 6 x 70 200 pcs. 1200 pcs. 8423533166104 10,036 €/100 70 9,8 4 6 52.9 10
TB06080 6 x 80 200 pcs. 1200 pcs. 8423533166203 10,992 €/100 80 9,8 4 6 62.9 10
TB06090 6 x 90 100 pcs. 1200 pcs. 8423533166302 12,951 €/100 90 9,8 4 6 72.9 10
TB06100 6 x 100 100 pcs. 1200 pcs. 8423533166401 13,573 €/100 100 9,8 4 6 82.9 10
TB06110 6 x 110 100 pcs. 1200 pcs. 8423533027672 17,884 €/100 110 9,8 4 6 92.9 10
TB06120 6 x 120 100 pcs. 800 pcs. 8423533165015 17,936 €/100 120 9,8 4 6 102.9 10
TB07030 7 x 30 200 pcs. 2400 pcs. 8423533166500 8,146 €/100 30 12,8 5 7 8.9 12
TB07040 7 x 40 200 pcs. 1600 pcs. 8423533166609 9,931 €/100 40 12,8 5 7 18.9 12
TB07050 7 x 50 200 pcs. 1200 pcs. 8423533166807 11,533 €/100 50 12,8 5 7 28.9 12
TB07060 7 x 60 100 pcs. 1200 pcs. 8423533166906 13,450 €/100 60 12,8 5 7 38.9 12
TB07070 7 x 70 100 pcs. 1200 pcs. 8423533167002 14,924 €/100 70 12,8 5 7 48.9 12
TB07080 7 x 80 100 pcs. 800 pcs. 8423533167101 16,448 €/100 80 12,8 5 7 58.9 12
TB07090 7 x 90 100 pcs. 400 pcs. 8423533167200 16,725 €/100 90 12,8 5 7 68.9 12
TB07100 7 x 100 100 pcs. 600 pcs. 8423533504654 18,908 €/100 100 12,8 5 7 78.9 12
TB07120 7 x 120 100 pcs. 600 pcs. 8423533504678 23,121 €/100 120 12,8 5 7 98.9 12
TB08030 8 x 30 200 pcs. 1200 pcs. 8423533027696 9,642 €/100 30 12,8 5,5 8 6.9 13
TB08040 8 x 40 200 pcs. 1200 pcs. 8423533167309 11,419 €/100 40 12,8 5,5 8 16.9 13
TB08045 8 x 45 200 pcs. 1200 pcs. 8423533167408 11,982 €/100 45 12,8 5,5 8 21.9 13
TB08050 8 x 50 200 pcs. 1200 pcs. 8423533167507 13,407 €/100 50 12,8 5,5 8 26.9 13
TB08060 8 x 60 200 pcs. 1200 pcs. 8423533167606 15,307 €/100 60 12,8 5,5 8 36.9 13
TB08070 8 x 70 200 pcs. 800 pcs. 8423533167705 17,403 €/100 70 12,8 5,5 8 46.9 13
TB08080 8 x 80 200 pcs. 800 pcs. 8423533167804 19,423 €/100 80 12,8 5,5 8 56.9 13
TB08090 8 x 90 100 pcs. 600 pcs. 8423533167903 22,289 €/100 90 12,8 5,5 8 66.9 13
TB08100 8 x 100 100 pcs. 600 pcs. 8423533168009 24,106 €/100 100 12,8 5,5 8 76.9 13
TB08110 8 x 110 100 pcs. 600 pcs. 8423533168108 24,827 €/100 110 12,8 5,5 8 86.9 13
TB08120 8 x 120 100 pcs. 600 pcs. 8423533168207 27,164 €/100 120 12,8 5,5 8 96.9 13
TB08130 8 x 130 100 pcs. 400 pcs. 8423533165312 29,387 €/100 130 12,8 5,5 8 106.9 13
TB08140 8 x 140 100 pcs. 400 pcs. 8423533165510 31,188 €/100 140 12,8 5,5 8 116.9 13
TB08150 8 x 150 100 pcs. 400 pcs. 8423533165619 33,496 €/100 150 12,8 5,5 8 126.9 13
TB08160 8 x 160 100 pcs. 400 pcs. 8423533165718 35,341 €/100 160 12,8 5,5 8 136.9 13
TB08180 8 x 180 100 pcs. 300 pcs. 8423533165817 45,991 €/100 180 12,8 5,5 8 156.9 13
TB08200 8 x 200 100 pcs. 300 pcs. 8423533165916 48,299 €/100 200 12,8 5,5 8 176.9 13
TB10040 10 x 40 100 pcs. 600 pcs. 8423533006820 22,318 €/100 40 16,8 7 10 10.5 17
TB10050 10 x 50 100 pcs. 600 pcs. 8423533168306 23,219 €/100 50 16,8 7 10 20.5 17
TB10060 10 x 60 100 pcs. 600 pcs. 8423533168405 25,323 €/100 60 16,8 7 10 30.5 17
TB10070 10 x 70 100 pcs. 600 pcs. 8423533168504 29,853 €/100 70 16,8 7 10 40.5 17
TB10080 10 x 80 100 pcs. 400 pcs. 8423533168603 32,155 €/100 80 16,8 7 10 50.5 17
TB10090 10 x 90 100 pcs. 400 pcs. 8423533168702 37,261 €/100 90 16,8 7 10 60.5 17
TB10100 10 x 100 100 pcs. 400 pcs. 8423533168801 38,664 €/100 100 16,8 7 10 70.5 17
TB10110 10 x 110 50 pcs. 300 pcs. 8423533168900 42,302 €/100 110 16,8 7 10 80.5 17
TB10120 10 x 120 50 pcs. 300 pcs. 8423533169006 46,632 €/100 120 16,8 7 10 90.5 17
TB10130 10 x 130 50 pcs. 300 pcs. 8423533166111 49,127 €/100 130 16,8 7 10 100.5 17
TB10140 10 x 140 50 pcs. 200 pcs. 8423533166319 58,636 €/100 140 16,8 7 10 110.5 17
TB10150 10 x 150 50 pcs. 200 pcs. 8423533166418 62,747 €/100 150 16,8 7 10 120.5 17
TB10160 10 x 160 50 pcs. 200 pcs. 8423533166517 66,980 €/100 160 16,8 7 10 130.5 17
TB10180 10 x 180 50 pcs. 150 pcs. 8423533166616 73,409 €/100 180 16,8 7 10 150.5 17
TB10200 10 x 200 50 pcs. 150 pcs. 8423533166715 80,753 €/100 200 16,8 7 10 170.5 17
TB12060 12 x 60 50 pcs. 300 pcs. 8423533169204 43,615 €/100 60 18,8 8 12 27 19
TB12070 12 x 70 50 pcs. 300 pcs. 8423533169303 45,995 €/100 70 18,8 8 12 37 19
TB12080 12 x 80 50 pcs. 300 pcs. 8423533169402 52,323 €/100 80 18,8 8 12 47 19
TB12090 12 x 90 50 pcs. 300 pcs. 8423533169501 55,757 €/100 90 18,8 8 12 57 19
TB12100 12 x 100 50 pcs. 300 pcs. 8423533169600 61,985 €/100 100 18,8 8 12 67 19
TB12120 12 x 120 50 pcs. 200 pcs. 8423533169808 75,354 €/100 120 18,8 8 12 87 19
TB12130 12 x 130 50 pcs. 100 pcs. 8423533166814 76,901 €/100 130 18,8 8 12 97 19
TB12140 12 x 140 50 pcs. 100 pcs. 8423533166913 82,739 €/100 140 18,8 8 12 107 19
TB12150 12 x 150 50 pcs. 200 pcs. 8423533167019 85,680 €/100 150 18,8 8 12 117 19
TB12160 12 x 160 50 pcs. 200 pcs. 8423533167118 91,552 €/100 160 18,8 8 12 127 19
TB12180 12 x 180 50 pcs. 150 pcs. 8423533167217 109,732 €/100 180 18,8 8 12 147 19
TB12200 12 x 200 50 pcs. 150 pcs. 8423533167316 124,977 €/100 200 18,8 8 12 167 19
TB12220 12 x 220 50 pcs. 100 pcs. 8423533167415 136,330 €/100 220 18,8 8 12 187 19
TB12240 12 x 240 50 pcs. 100 pcs. 8423533167514 146,224 €/100 240 18,8 8 12 207 19
TB12260 12 x 260 50 pcs. 100 pcs. 8423533167613 160,296 €/100 260 18,8 8 12 227 19
TB14100 14 x 100 50 pcs. 200 pcs. 8423533167811 105,278 €/100 100 21,7 9 14 63.5 22
Código Medida range sell
!
L dk k Espesor máx. a fijar Llave de instalación
Cantidad Bolsas EAN Cantidad EAN Precio
BZTB05030 5 x 30 80 pcs. 20 bolsas 8423533432247 4 pcs. 8423533424594 1,803 €/BOLSA 30 7,8 3,5 5 15.5 8
BZTB05040 5 x 40 80 pcs. 20 bolsas 8423533432254 4 pcs. 8423533424600 1,803 €/BOLSA 40 7,8 3,5 5 25.5 8
BZTB05050 5 x 50 80 pcs. 20 bolsas 8423533432261 4 pcs. 8423533424617 1,803 €/BOLSA 50 7,8 3,5 5 35.5 8
BZTB06030 6 x 30 80 pcs. 20 bolsas 8423533432278 4 pcs. 8423533424624 1,803 €/BOLSA 30 9,8 4 6 12.9 10
BZTB06040 6 x 40 80 pcs. 20 bolsas 8423533432285 4 pcs. 8423533424631 1,803 €/BOLSA 40 9,8 4 6 22.9 10
BZTB06050 6 x 50 80 pcs. 20 bolsas 8423533432292 4 pcs. 8423533424648 1,803 €/BOLSA 50 9,8 4 6 32.9 10
BZTB06060 6 x 60 80 pcs. 20 bolsas 8423533432308 4 pcs. 8423533424655 1,803 €/BOLSA 60 9,8 4 6 42.9 10
BZTB06070 6 x 70 80 pcs. 20 bolsas 8423533432315 4 pcs. 8423533424662 1,803 €/BOLSA 70 9,8 4 6 52.9 10
BZTB06080 6 x 80 80 pcs. 20 bolsas 8423533432322 4 pcs. 8423533424679 1,803 €/BOLSA 80 9,8 4 6 62.9 10
BZTB07050 7 x 50 80 pcs. 20 bolsas 8423533432339 4 pcs. 8423533424686 1,803 €/BOLSA 50 12,8 5 7 28.9 12
BZTB07060 7 x 60 80 pcs. 20 bolsas 8423533432346 4 pcs. 8423533424693 1,803 €/BOLSA 60 12,8 5 7 38.9 12
BZTB07070 7 x 70 80 pcs. 20 bolsas 8423533432353 4 pcs. 8423533424709 1,803 €/BOLSA 70 12,8 5 7 48.9 12
BZTB08040 8 x 40 80 pcs. 20 bolsas 8423533432360 4 pcs. 8423533424716 1,803 €/BOLSA 40 12,8 5,5 8 16.9 13
BZTB08050 8 x 50 80 pcs. 20 bolsas 8423533432377 4 pcs. 8423533424723 1,803 €/BOLSA 50 12,8 5,5 8 26.9 13
BZTB08060 8 x 60 80 pcs. 20 bolsas 8423533432384 4 pcs. 8423533424730 1,803 €/BOLSA 60 12,8 5,5 8 36.9 13
BZTB08070 8 x 70 80 pcs. 20 bolsas 8423533432391 4 pcs. 8423533424747 1,803 €/BOLSA 70 12,8 5,5 8 46.9 13
BZTB08080 8 x 80 60 pcs. 15 bolsas 8423533432407 4 pcs. 8423533424754 1,803 €/BOLSA 80 12,8 5,5 8 56.9 13
BZTB08090 8 x 90 30 pcs. 15 bolsas 8423533432414 2 pcs. 8423533424761 1,803 €/BOLSA 90 12,8 5,5 8 66.9 13
BZTB08100 8 x 100 30 pcs. 15 bolsas 8423533432421 2 pcs. 8423533424778 1,803 €/BOLSA 100 12,8 5,5 8 76.9 13
BZTB10050 10 x 50 30 pcs. 15 bolsas 8423533432438 2 pcs. 8423533424785 1,803 €/BOLSA 70 16,8 7 10 40.5 17
BZTB10060 10 x 60 30 pcs. 15 bolsas 8423533432445 2 pcs. 8423533424792 1,803 €/BOLSA 80 16,8 7 10 50.5 17
BZTB10080 10 x 80 30 pcs. 15 bolsas 8423533432452 2 pcs. 8423533424808 1,803 €/BOLSA 90 16,8 7 10 60.5 17
Código Medida range sell
"
L dk k Espesor máx. a fijar Llave de instalación
Cantidad Cajas EAN Cantidad EAN Precio
VTB05040 5 x 40 400 pcs. 8 cajas 8423533403056 50 pcs. 8423533758217 3,493 €/CAJA 40 7,8 3,5 5 25.5 8
VTB05050 5 x 50 400 pcs. 8 cajas 8423533403063 50 pcs. 8423533758224 4,107 €/CAJA 50 7,8 3,5 5 35.5 8
VTB06040 6 x 40 400 pcs. 8 cajas 8423533403070 50 pcs. 8423533758231 4,345 €/CAJA 40 9,8 4 6 22.9 10
VTB06050 6 x 50 320 pcs. 8 cajas 8423533403087 40 pcs. 8423533758248 4,077 €/CAJA 50 9,8 4 6 32.9 10
VTB06060 6 x 60 240 pcs. 8 cajas 8423533403094 30 pcs. 8423533758255 3,572 €/CAJA 60 9,8 4 6 42.9 10
VTB07050 7 x 50 200 pcs. 8 cajas 8423533403100 25 pcs. 8423533758262 3,912 €/CAJA 50 12,8 5 7 28.9 12
VTB07060 7 x 60 160 pcs. 8 cajas 8423533403117 20 pcs. 8423533758279 3,724 €/CAJA 60 12,8 5 7 38.9 12
VTB07070 7 x 70 160 pcs. 8 cajas 8423533403124 20 pcs. 8423533758286 4,028 €/CAJA 70 12,8 5 7 48.9 12
VTB07080 7 x 80 160 pcs. 8 cajas 8423533403131 20 pcs. 8423533758293 4,247 €/CAJA 80 12,8 5 7 58.9 12
VTB08050 8 x 50 160 pcs. 8 cajas 8423533403148 20 pcs. 8423533758309 3,656 €/CAJA 50 12,8 5,5 8 26.9 13
VTB08060 8 x 60 160 pcs. 8 cajas 8423533403155 20 pcs. 8423533758316 4,175 €/CAJA 60 12,8 5,5 8 36.9 13
VTB08070 8 x 70 160 pcs. 8 cajas 8423533403162 20 pcs. 8423533758323 4,747 €/CAJA 70 12,8 5,5 8 46.9 13
VTB08080 8 x 80 120 pcs. 8 cajas 8423533403179 15 pcs. 8423533758330 3,973 €/CAJA 80 12,8 5,5 8 56.9 13
VTB08090 8 x 90 80 pcs. 8 cajas 8423533403186 10 pcs. 8423533758347 3,026 €/CAJA 90 12,8 5,5 8 66.9 13
VTB08100 8 x 100 80 pcs. 8 cajas 8423533403193 10 pcs. 8423533758354 3,255 €/CAJA 100 12,8 5,5 8 76.9 13
VTB10070 10 x 70 80 pcs. 8 cajas 8423533403209 10 pcs. 8423533758361 4,090 €/CAJA 70 16,8 7 10 40.5 17
VTB10080 10 x 80 80 pcs. 8 cajas 8423533403216 10 pcs. 8423533758378 4,341 €/CAJA 80 16,8 7 10 50.5 17
VTB10090 10 x 90 80 pcs. 8 cajas 8423533403223 10 pcs. 8423533758385 5,031 €/CAJA 90 16,8 7 10 60.5 17
VTB10100 10 x 100 80 pcs. 8 cajas 8423533403230 10 pcs. 8423533758392 5,298 €/CAJA 100 16,8 7 10 70.5 17
Código range sell
·
L dk k Espesor máx. a fijar Llave de instalación
Código range exhibitor box
·
L dk k Espesor máx. a fijar Llave de instalación
Código range case L dk k Espesor máx. a fijar Llave de instalación
Código range sell range exhibitor box L dk k Espesor máx. a fijar Llave de instalación
* Recuerde que el contenido que aquí se muestra tiene carácter meramente informativo, puede contener errores, estar sujeto a modificaciones, carece de valor contractual y sus precios nunca incluyen impuestos.

Técnicas Expansivas S.L

Segador 13. Logroño. Spain

13

DoP TB - www.indexfix.com

EN 14592
